eSpCas9-hGeminin
(Plasmid #199344)

• Purpose: modified version of the eSpCas9(1.1)_No_FLAG_ATP1A1_G3_Dual_sgRNA plasmid (addgene #86613) where the C-terminus of the eSpCas9 enzyme was fused to amino acids 1 – 110 of human Geminin
• Depositing Lab: Iain Hagan
• Depositing Organization: University of Manchester
  Located in United Kingdom of Great Britain and Northern Ireland
• Publication: Morrison et al Open Biol. 2023 Apr;13(4):230021. doi: 10.1098/rsob.230021. Epub 2023 Apr 12.

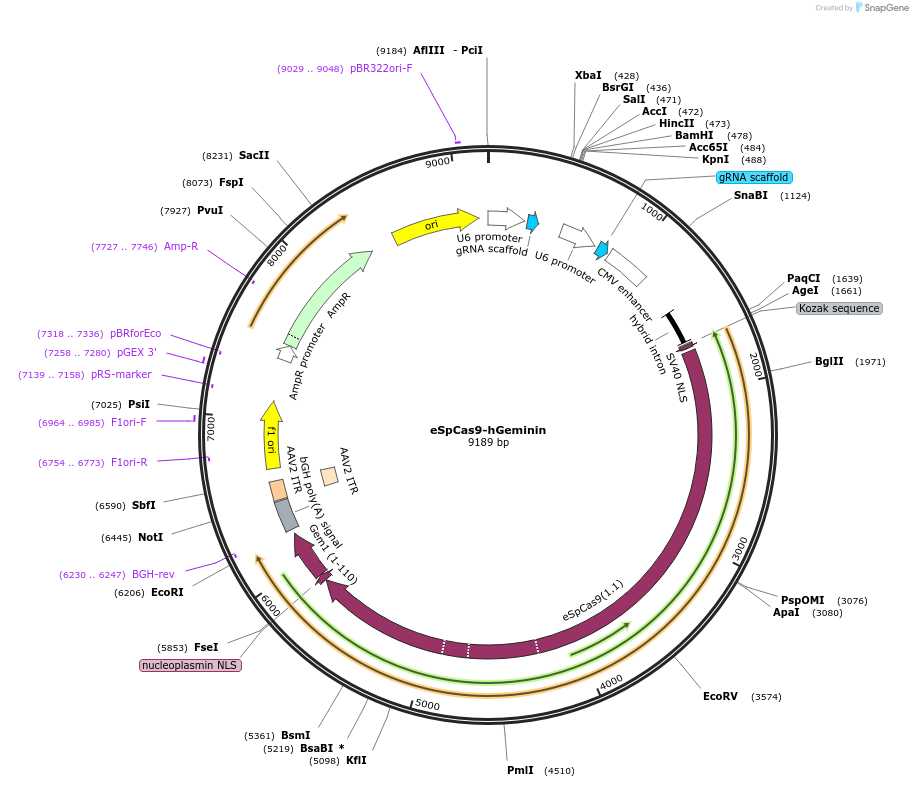

Backbone

• Vector backbone: pX330-U6-Chimeric_BB-CBh-hSpCas9
• Total vector size (bp): 9188
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: ATP1A1 G3 sgRNA+user-specified sgRNA+enhanced specificity Cas9 (1.1) (addgene 86613) with cas9 fused to hgem fragment 1-110)
• Species: S. pyogenes
• Insert Size (bp): 9188
• Mutation: cas9 c-term fused to hgemenin 1-110 fragment
• Entrez Gene: GMNN (a.k.a. Gem, MGORS6)
• Promoter: cbh
• Tag / Fusion Protein:
  • cas9 c-term fused to hgemenin 1-110 fragment (C terminal on insert)

Cloning Information

• Cloning method: Gibson Cloning
• 5′ sequencing primer: GCAGACAAATGGCTCTAGCTG
• 3′ sequencing primer: CAGCTAGAGCCATTTGTCTGC

Resource Information

• A portion of this plasmid was derived from a plasmid made by: Addgene 86613 (eSpCas9(1.1)_No_FLAG_ATP1A1_G3_Dual_sgRNA) https://www.addgene.org/86613/

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

DNA (Catalog # 199344-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 199344-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
