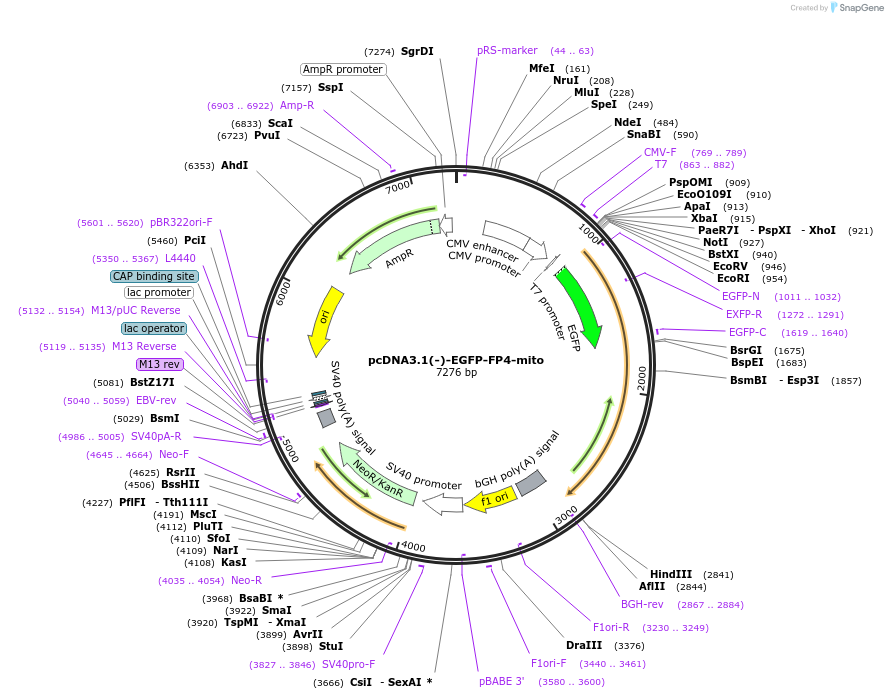

pcDNA3.1(-)-EGFP-FP4-mito
(Plasmid #229692)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 229692 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 229692-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 229692-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pcDNA 3.1(-)
  • Backbone size w/o insert (bp) 5401
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    EGFP; Mitochondira FP4 motifs from Listeria ActA
  • Species
    Listeria monocytogenes
  • Insert Size (bp)
    1875
  • Promoter CMV promoter
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer T7 Forward; TAATACGACTCACTATAGGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1(-)-EGFP-FP4-mito was a gift from Alpha Yap (Addgene plasmid # 229692 ; http://n2t.net/addgene:229692 ; RRID:Addgene_229692)

  • For your References section:

    Ena/VASP proteins can regulate distinct modes of actin organization at cadherin-adhesive contacts. Scott JA, Shewan AM, den Elzen NR, Loureiro JJ, Gertler FB, Yap AS. Mol Biol Cell. 2006 Mar;17(3):1085-95. doi: 10.1091/mbc.e05-07-0644. Epub 2005 Dec 21. 10.1091/mbc.e05-07-0644 PubMed 16371509
