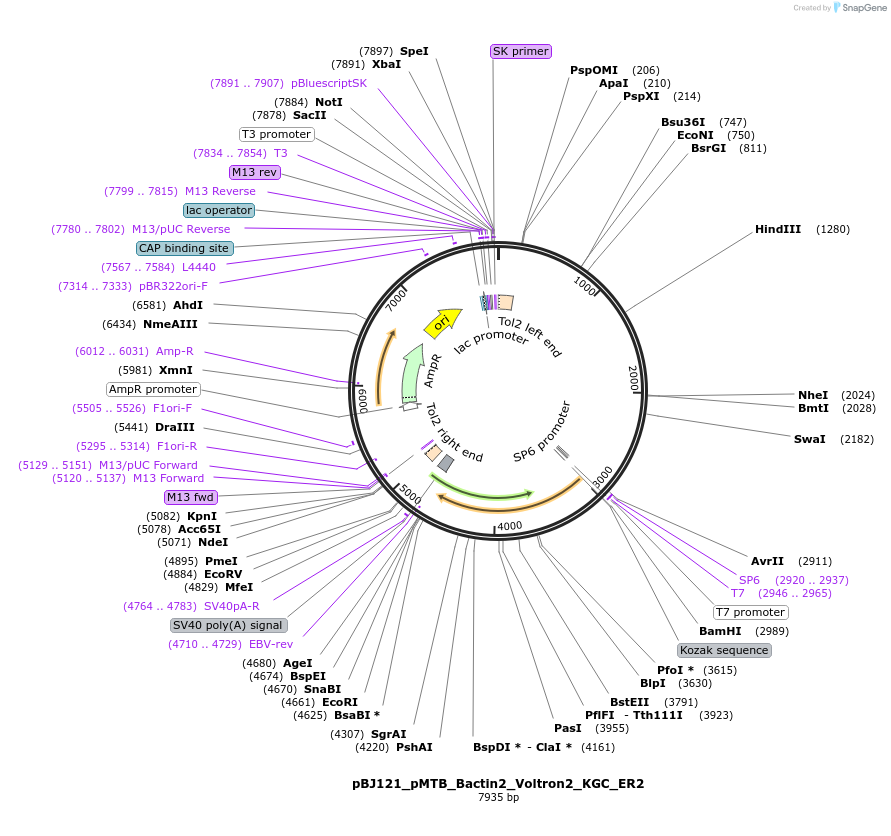

pBJ121_pMTB_Bactin2_Voltron2_KGC_ER2
(Plasmid #258173)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 258173 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart

Backbone

  • Vector backbone
    pMTB
  • Vector type
    Zebrafish Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Voltron2_KGC_ER2
  • Species
    Synthetic
  • Promoter Beta Actin 2

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer ATGGTCACATGCTTGCTG
  • 3′ sequencing primer GCAATAGCATCACAAATTTC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.64898/2026.07.17.739178 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBJ121_pMTB_Bactin2_Voltron2_KGC_ER2 was a gift from Adam Cohen (Addgene plasmid # 258173 ; http://n2t.net/addgene:258173 ; RRID:Addgene_258173)

  • For your References section:

    Absolute voltage mapping using dynamic photocycle control. Gong D, Zhang J, Howell MR, Wu X, Jia BZ, Cohen AE. bioRxiv 2026.07.17.739178 10.64898/2026.07.17.739178
