Fz4-GFP
(Plasmid #42197)

Full plasmid sequence is not available for this item.

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 42197 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

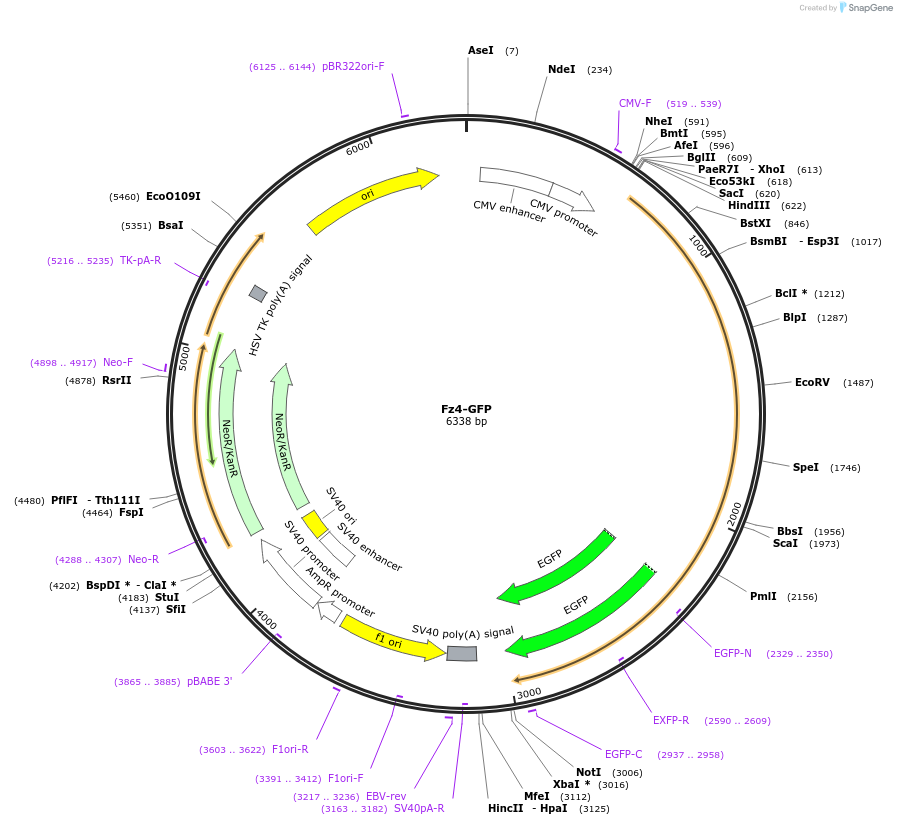

Backbone

  • Vector backbone
    pEGFP-N2
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Frizzled 4
  • Alt name
    Fz4
  • Alt name
    frizzled homolog 4
  • Alt name
    Fzd4
  • Species
    M. musculus (mouse)
  • GenBank ID
    NM_008055.4 NP_032081.3
  • Entrez Gene
    Fzd4 (a.k.a. Fz4)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer EGFP-N, SV40pA-R
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

Fz4-GFP was generated by fusing EGFP (Clontech) at its C-terminus.

Alternate plasmid names: pEGFPN2 mFz4; pEGFP-N2-Frizzled4

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Fz4-GFP was a gift from Robert Lefkowitz & Jeremy Nathans (Addgene plasmid # 42197 ; http://n2t.net/addgene:42197 ; RRID:Addgene_42197)
  • For your References section:

    Dishevelled 2 recruits beta-arrestin 2 to mediate Wnt5A-stimulated endocytosis of Frizzled 4. Chen W, ten Berge D, Brown J, Ahn S, Hu LA, Miller WE, Caron MG, Barak LS, Nusse R, Lefkowitz RJ. Science. 2003 Sep 5;301(5638):1391-4. 10.1126/science.1082808 PubMed 12958364
