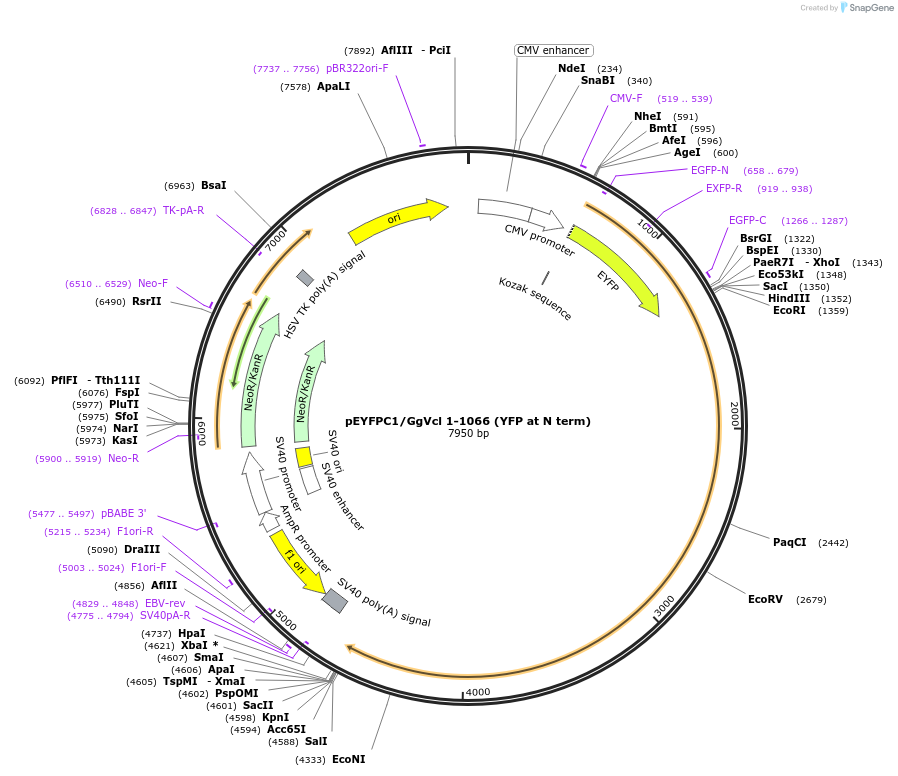

pEYFPC1/GgVcl 1-1066 (YFP at N term)
(Plasmid #46279)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 46279 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEYFP-C1
  • Backbone manufacturer
    Clonetech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 7950
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Vcl 1-1066
  • Alt name
    Vinculin
  • Alt name
    Vcl
  • Species
    G. gallus (chicken)
  • Entrez Gene
    VCL (a.k.a. VINC1)
  • Promoter CMV
  • Tag / Fusion Protein
    • EYFP (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer EGFP-C
  • 3′ sequencing primer SV40 pA R
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEYFPC1/GgVcl 1-1066 (YFP at N term) was a gift from Susan Craig (Addgene plasmid # 46279 ; http://n2t.net/addgene:46279 ; RRID:Addgene_46279)
  • For your References section:

    Spatial distribution and functional significance of activated vinculin in living cells. Chen H, Cohen DM, Choudhury DM, Kioka N, Craig SW. J Cell Biol. 2005 May 9;169(3):459-70. 10.1083/jcb.200410100 PubMed 15883197
