pUG-135
(Plasmid #104703)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 104703 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

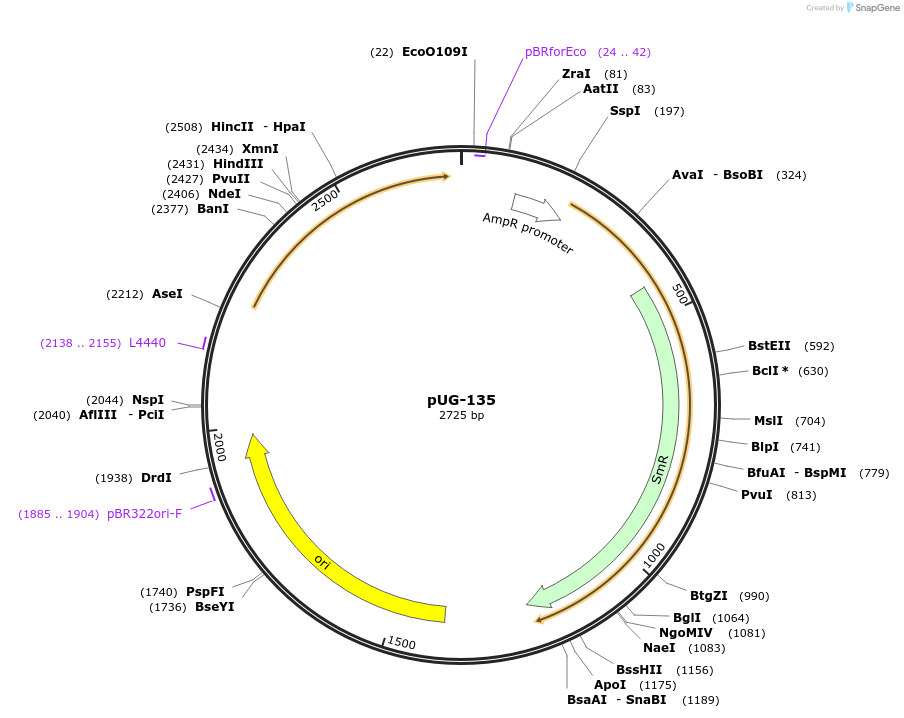

Backbone

  • Vector backbone
    pICH41308
  • Backbone manufacturer
    self-made
  • Backbone size w/o insert (bp) 2251
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MMZ1/UEV1A
  • Alt name
    AT1G23260
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    482
  • Entrez Gene
    MMZ1 (a.k.a. F26F24.10, F26F24_10, MMS ZWEI homologue 1, MMZ1, UBIQUITIN E2 VARIANT 1A, UEV1A)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer moclof, agcgaggaagcggaagagcg
  • 3′ sequencing primer moclor, gccacctgacgtctaagaaacc
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses

Depositor Comments

release insert with BsaI and clone to Level 1 cloning vector

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUG-135 was a gift from Marco Trujillo (Addgene plasmid # 104703 ; http://n2t.net/addgene:104703 ; RRID:Addgene_104703)
  • For your References section:

    UbiGate: a synthetic biology toolbox to analyse ubiquitination. Kowarschik K, Hoehenwarter W, Marillonnet S, Trujillo M. New Phytol. 2018 Mar;217(4):1749-1763. doi: 10.1111/nph.14900. Epub 2017 Nov 30. 10.1111/nph.14900 PubMed 29194629
