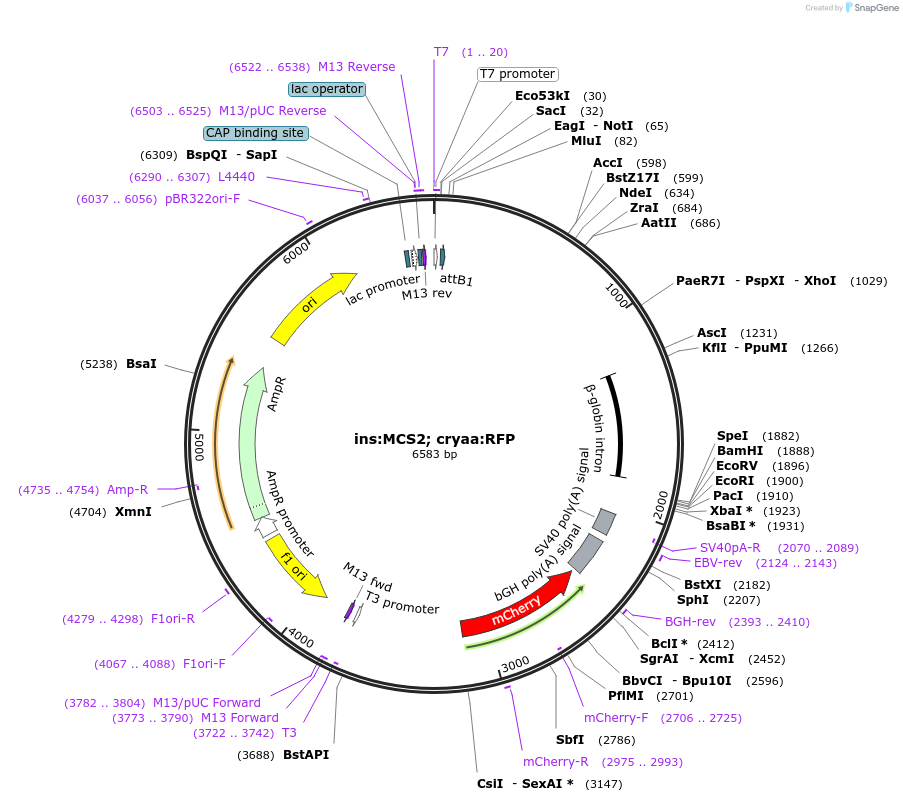

ins:MCS2; cryaa:RFP
(Plasmid #110286)


Item Catalog # Description Quantity Price (USD)
Plasmid 110286 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size (bp) 6582
  • Modifications to backbone
    A multiple cloning site (MCS2) inserted downstream of the zebrafish insulin promoter.
  • Vector type
  • Promoter insulin

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ sequencing primer ACACCCTGGTCATCATCCTG
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ins:MCS2; cryaa:RFP was a gift from Nikolay Ninov (Addgene plasmid # 110286 ; ; RRID:Addgene_110286)
  • For your References section:

    Different developmental histories of beta-cells generate functional and proliferative heterogeneity during islet growth. Singh SP, Janjuha S, Hartmann T, Kayisoglu O, Konantz J, Birke S, Murawala P, Alfar EA, Murata K, Eugster A, Tsuji N, Morrissey ER, Brand M, Ninov N. Nat Commun. 2017 Sep 22;8(1):664. doi: 10.1038/s41467-017-00461-3. 10.1038/s41467-017-00461-3 [pii] PubMed 28939870
