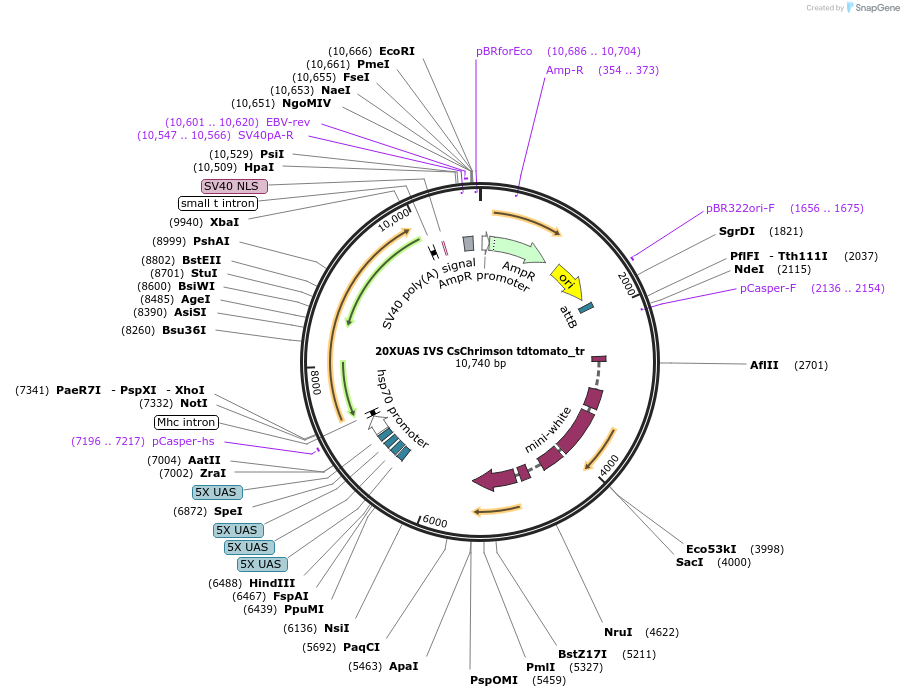

20XUAS IVS CsChrimson tdtomato_tr
(Plasmid #111544)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 111544 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    20XUAS IVS sv40
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Chrimson_tdtomato_trafficked
  • Species
    D. melanogaster (fly)
  • Mutation
    wt
  • Promoter hsp70

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    20XUAS IVS CsChrimson tdtomato_tr was a gift from Vivek Jayaraman (Addgene plasmid # 111544 ; http://n2t.net/addgene:111544 ; RRID:Addgene_111544)
  • For your References section:

    Independent optical excitation of distinct neural populations. Klapoetke NC, Murata Y, Kim SS, Pulver SR, Birdsey-Benson A, Cho YK, Morimoto TK, Chuong AS, Carpenter EJ, Tian Z, Wang J, Xie Y, Yan Z, Zhang Y, Chow BY, Surek B, Melkonian M, Jayaraman V, Constantine-Paton M, Wong GK8, Boyden ES.. Nat Methods. 2014 Mar;11(3):338-46. Epub 2014 Feb 9. 10.1038/nmeth.2836. PubMed 24997763
