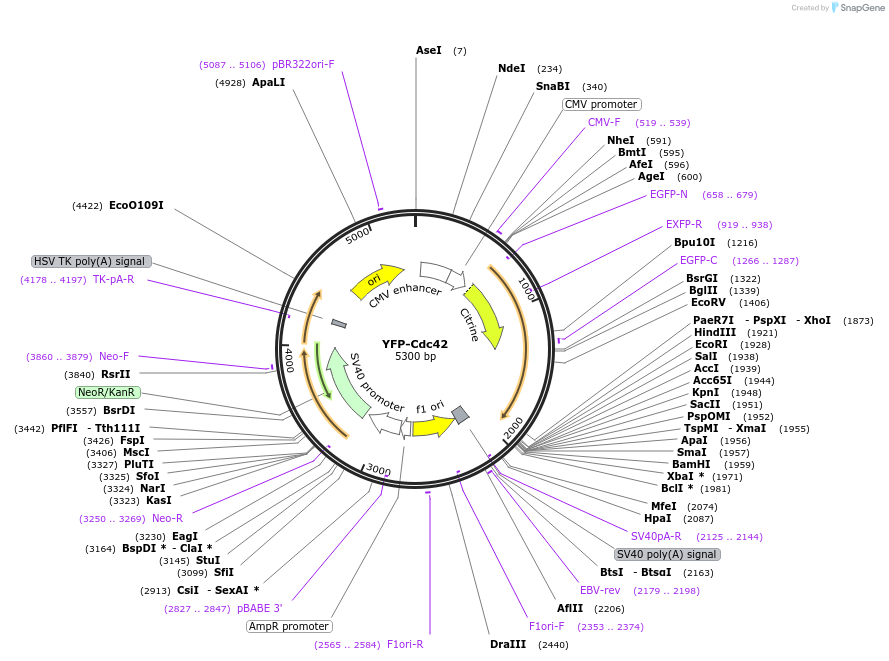

YFP-Cdc42
(Plasmid #11392)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 11392 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEYFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4731
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    cell division cycle 42
  • Alt name
    Cdc42
  • Alt name
    YFP
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    662
  • GenBank ID
    AF498962
  • Entrez Gene
    CDC42 (a.k.a. CDC42Hs, G25K, TKS)
  • Tag / Fusion Protein
    • YFP (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CCTGAGCAAAGACCCCAACGAGAA
  • 3′ sequencing primer CAGGGGGAGGTGTGGGAGGTTT
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Human Cdc42 cDNA was obtained from the UMR cDNA Resource Center (www.cdna.org).
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Expresses Cdc42 with an N-terminal YFP marker. YFP is the monomeric (A207K) version of Citrine, a pH-insensitive YFP.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YFP-Cdc42 was a gift from Joel Swanson (Addgene plasmid # 11392 ; http://n2t.net/addgene:11392 ; RRID:Addgene_11392)
  • For your References section:

    Cdc42, Rac1, and Rac2 display distinct patterns of activation during phagocytosis. Hoppe AD, Swanson JA. Mol Biol Cell 2004 Aug;15(8):3509-19. Epub 2004 May 28. 10.1091/mbc.e03-11-0847 PubMed 15169870
