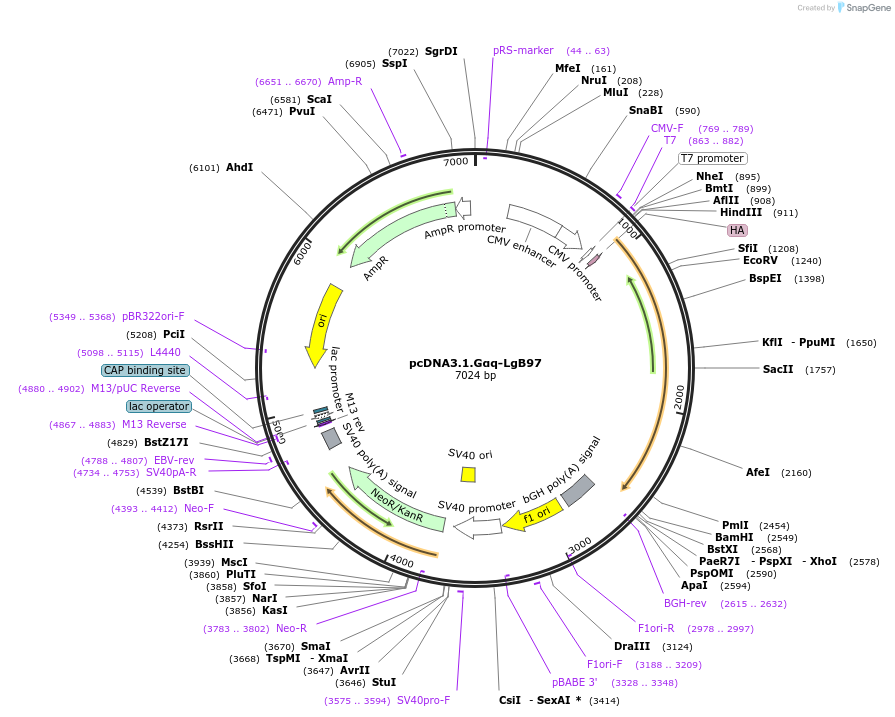

pcDNA3.1.Gαq-LgB97
(Plasmid #134360)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 134360 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone size w/o insert (bp) 5400
  • Total vector size (bp) 7021
  • Vector type
    Mammalian Expression, Bacterial Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Gαq-LgB97
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1629
  • GenBank ID
    NM_002072.5
  • Entrez Gene
    GNAQ (a.k.a. CMC1, G-ALPHA-q, GAQ, SWS)
  • Promoter T7
  • Tag / Fusion Protein
    • HA (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer TTCCCAATCCTCCCCCTTG
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1.Gαq-LgB97 was a gift from Julien Hanson (Addgene plasmid # 134360 ; http://n2t.net/addgene:134360 ; RRID:Addgene_134360)
  • For your References section:

    A dynamic and screening-compatible nanoluciferase-based complementation assay enables profiling of individual GPCR-G protein interactions. Laschet C, Dupuis N, Hanson J. J Biol Chem. 2019 Mar 15;294(11):4079-4090. doi: 10.1074/jbc.RA118.006231. Epub 2018 Dec 28. 10.1074/jbc.RA118.006231 PubMed 30593506
