Vector backbonepcDNA3.1 +
- Backbone size w/o insert (bp) 5500
Vector typeMammalian Expression
Selectable markersNeomycin (select with G418)
Growth in Bacteria
Copy numberHigh Copy
SpeciesH. sapiens (human)
Insert Size (bp)1199
Entrez GeneSIRT3 (a.k.a. SIR2L3)
/ Fusion Protein
- flag (C terminal on backbone)
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer T7
- 3′ sequencing primer BGH Reverse (Common Sequencing Primers)
cloned into a version of pcDNA3.1 that has been modified to include a C-terminal Flag tag (see author's map for details).
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:SIRT3 Flag was a gift from Eric Verdin (Addgene plasmid # 13814)
For your References section:The human Sir2 ortholog, SIRT2, is an NAD+-dependent tubulin deacetylase. North BJ, Marshall BL, Borra MT, Denu JM, Verdin E. Mol Cell. 2003 Feb . 11(2):437-44. 10.1016/S1097-2765(03)00038-8 PubMed 12620231

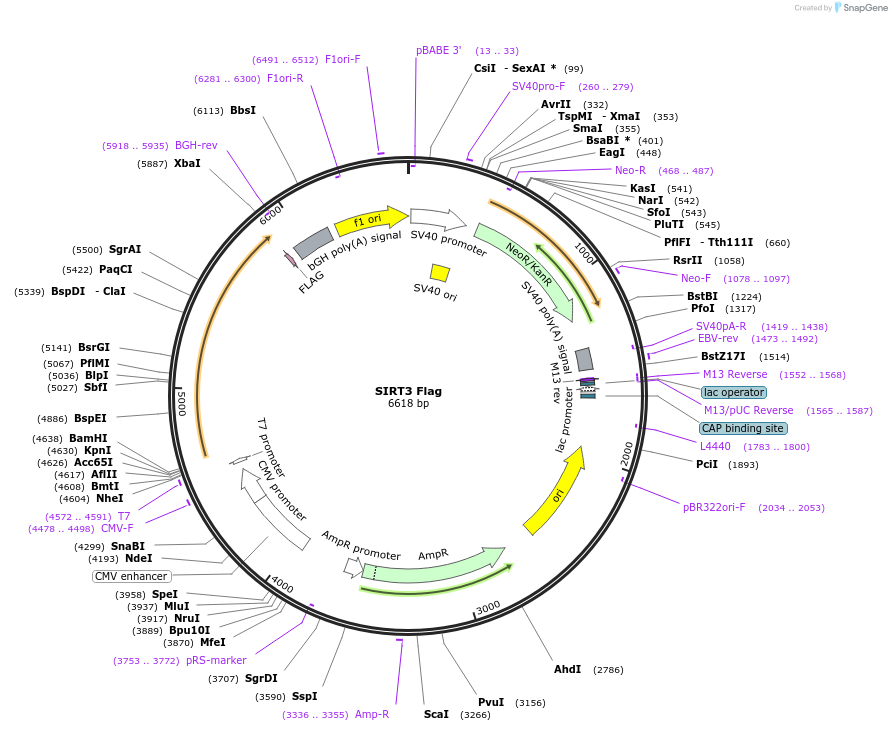

Map generated by Addgene from full sequence.
Map uploaded by the depositor.
