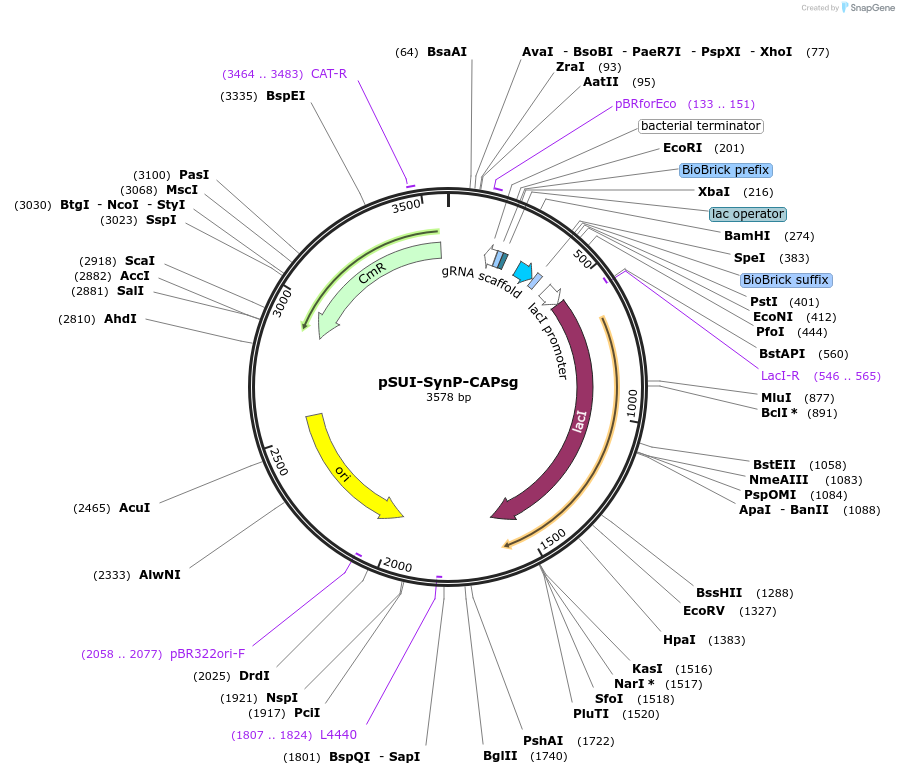

pSUI-SynP-CAPsg
(Plasmid #154344)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 154344 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pSUI-SynP-sfGFP
  • Total vector size (bp) 3578
  • Vector type
    Bacterial Expression, CRISPR, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CAP sgRNA
  • gRNA/shRNA sequence
    GGCTAATATAGGGCAACTCC

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer TGCCACCTGACGTCTAAGAA
  • 3′ sequencing primer ACTCTGCGACATCGTATAACG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSUI-SynP-CAPsg was a gift from I-Son Ng (Addgene plasmid # 154344 ; http://n2t.net/addgene:154344 ; RRID:Addgene_154344)
  • For your References section:

    CRISPRi-mediated Programming Essential Gene can as a Direct Enzymatic Performance Evaluation & Determination (DEPEND) System. Tan SI, Yu PJ, Ng IS. Biotechnol Bioeng. 2020 May 27. doi: 10.1002/bit.27443. 10.1002/bit.27443 PubMed 32458463
