EGFP-COV M
(Plasmid #165124)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 165124 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFPC1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    COV M
  • Species
    codon optimized SARS-COV-2
  • Insert Size (bp)
    600
  • Entrez Gene
    M (a.k.a. GU280_gp05)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

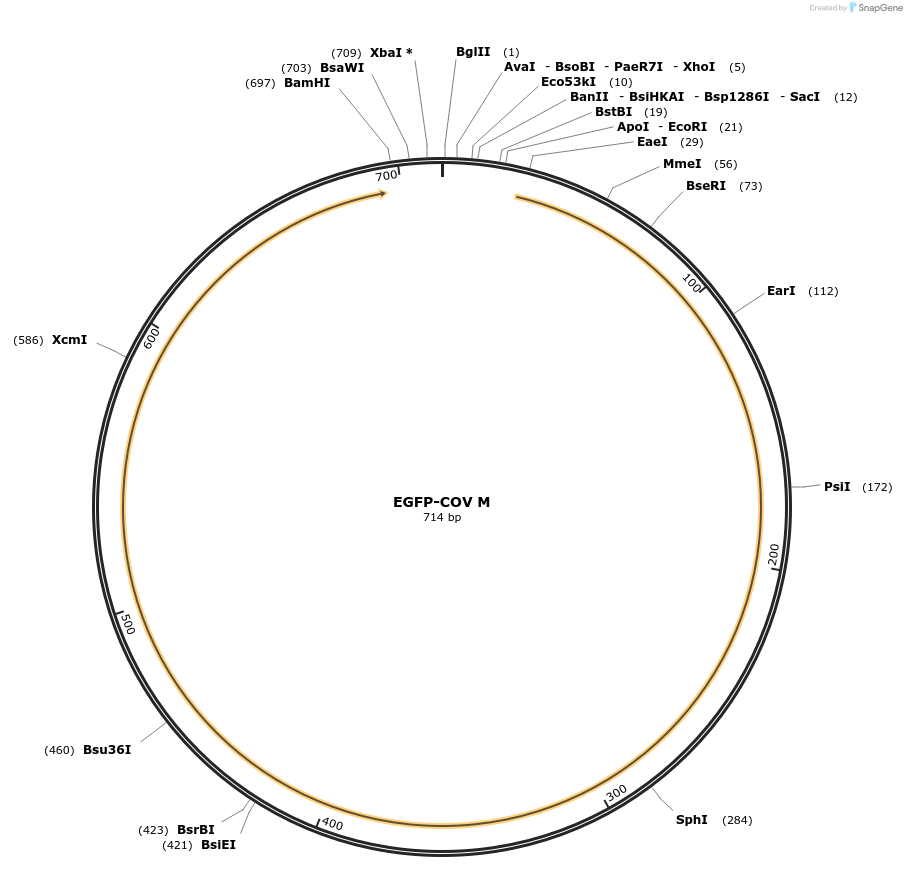

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer AACGAGAAGCGCGATCA
  • 3′ sequencing primer TATGTTTCAGGTTCAGG
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Inserts were prepared by PCR with templates that have been published elsewhere: Gordon et al., 2020a.

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/10.1101/2020.12.19.423586v1 for BioRxiv preprint. bioRxiv 2020.12.19.423586v1

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    EGFP-COV M was a gift from Bruno Antonny (Addgene plasmid # 165124 ; http://n2t.net/addgene:165124 ; RRID:Addgene_165124)
  • For your References section:

    A comprehensive library of fluorescent constructs of SARS-CoV-2 proteins and their initial characterisation in different cell types. Miserey-Lenkei S, Trajkovic K, D'Ambrosio JM, Patel AJ, Copic A, Mathur P, Schauer K, Goud B, Albanese V, Gautier R, Subra M, Kovacs D, Barelli H, Antonny B. Biol Cell. 2021 Jul;113(7):311-328. doi: 10.1111/boc.202000158. Epub 2021 May 10. 10.1111/boc.202000158 PubMed 33666950
