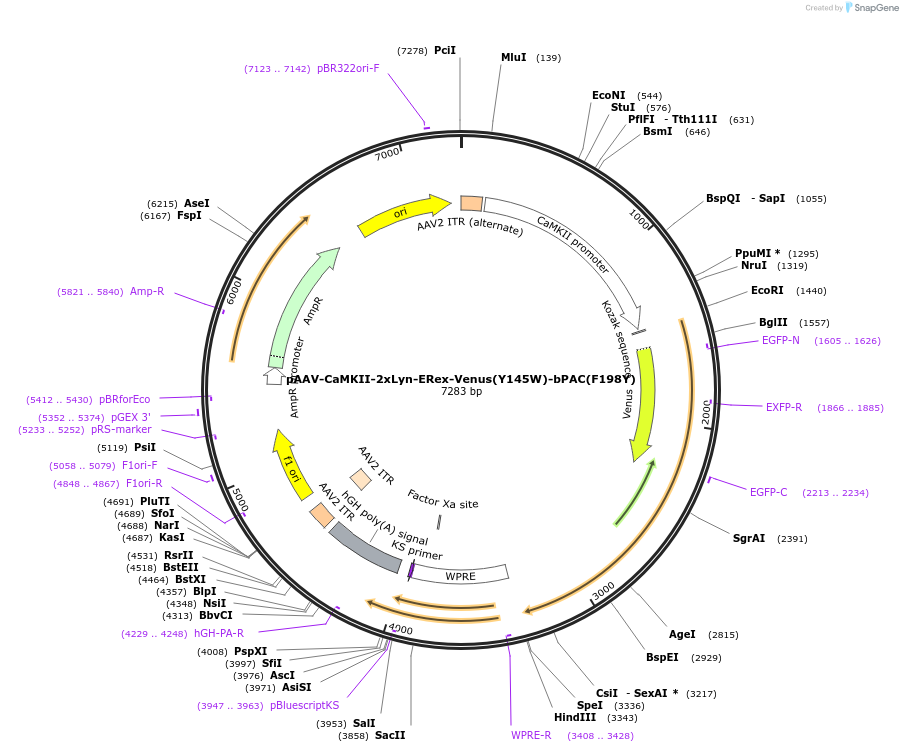

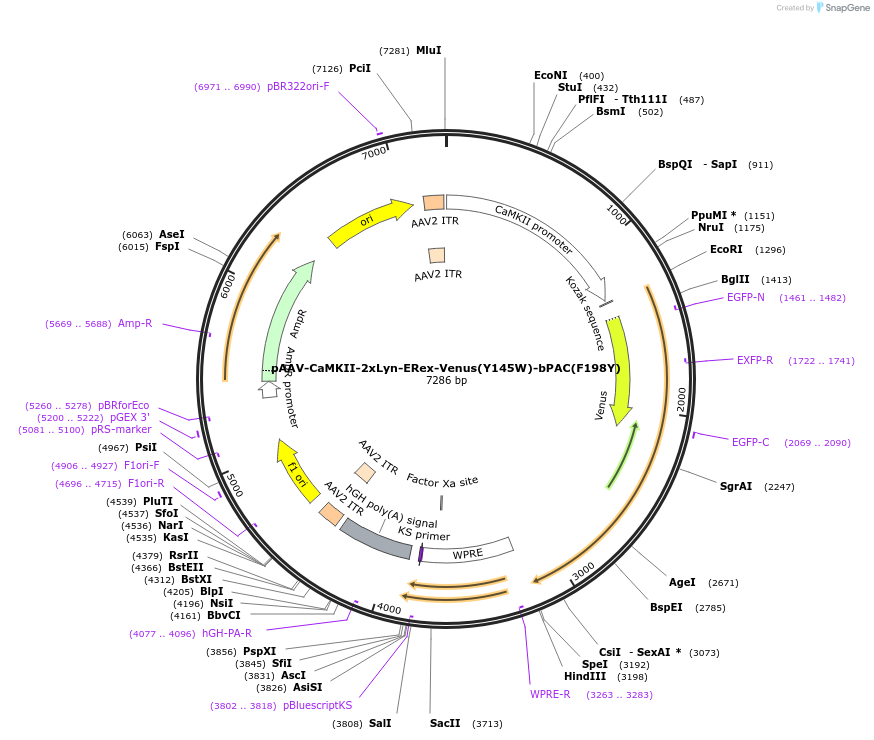

pAAV-CaMKII-2xLyn-ERex-Venus(Y145W)-bPAC(F198Y)
(Plasmid #165493)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 165493 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pAAV
  • Backbone manufacturer
    Stratagene
  • Backbone size w/o insert (bp) 5985
  • Total vector size (bp) 7286
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    2xLyn-ERex-Venus(Y145W)-bPAC(F198Y)
  • Alt name
    PACmn (darkVenus)
  • Species
    Synthetic; Beggiatoa
  • Insert Size (bp)
    1902
  • Promoter CaMKII
  • Tag / Fusion Protein
    • darkVenus

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer caagggcgaggagctgttca
  • 3′ sequencing primer CCGGTGGCTCTGGGTGATG
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Insert was assembled in the lab of Georg Nagel

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid is identical to PACmn but with expression in excitatory neurons and a point mutation in Venus to reduce fluorescence by about 90% to facilitate combining with fluorescent indicators etc. It was not used in the original publication.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CaMKII-2xLyn-ERex-Venus(Y145W)-bPAC(F198Y) was a gift from Thomas Oertner (Addgene plasmid # 165493 ; http://n2t.net/addgene:165493 ; RRID:Addgene_165493)
  • For your References section:

    PACmn for improved optogenetic control of intracellular cAMP. Yang S, Constantin OM, Sachidanandan D, Hofmann H, Kunz TC, Kozjak-Pavlovic V, Oertner TG, Nagel G, Kittel RJ, Gee CE, Gao S. BMC Biol. 2021 Oct 18;19(1):227. doi: 10.1186/s12915-021-01151-9. 10.1186/s12915-021-01151-9 PubMed 34663304
