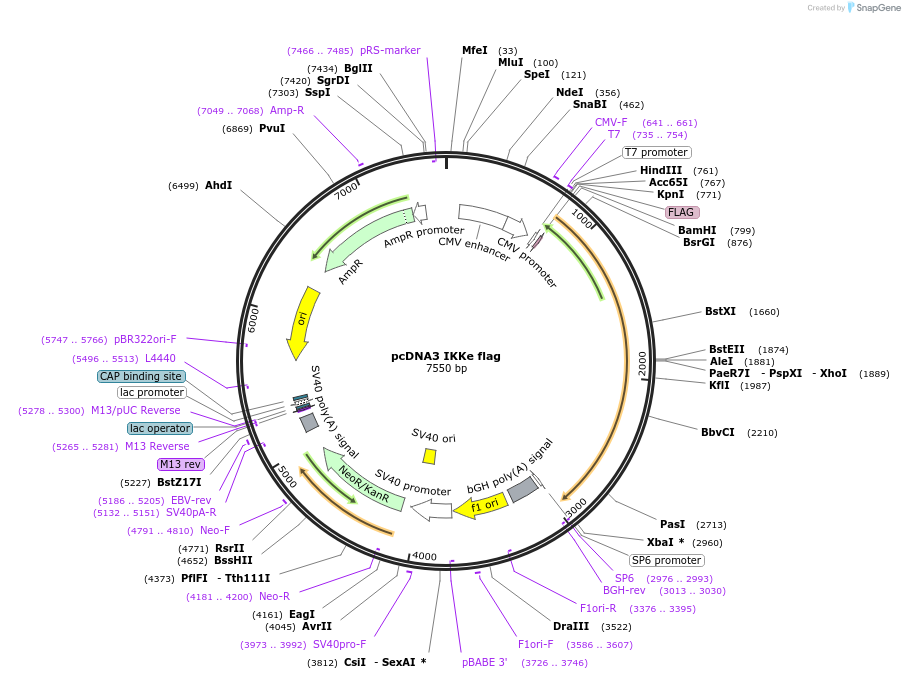

pcDNA3 IKKe flag
(Plasmid #26201)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 26201 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5400
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    I-kappa-B kinase epsilon
  • Alt name
    ikbke
  • Alt name
    IKKe
  • Alt name
    IKKi
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2154
  • GenBank ID
    NM_014002
  • Entrez Gene
    IKBKE (a.k.a. IKK-E, IKK-i, IKKE, IKKI)
  • Promoter CMV
  • Tag / Fusion Protein
    • Flag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH-rev
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3 IKKe flag was a gift from Tom Maniatis (Addgene plasmid # 26201 ; http://n2t.net/addgene:26201 ; RRID:Addgene_26201)
  • For your References section:

    IKKepsilon and TBK1 are essential components of the IRF3 signaling pathway. Fitzgerald KA, McWhirter SM, Faia KL, Rowe DC, Latz E, Golenbock DT, Coyle AJ, Liao SM, Maniatis T. Nat Immunol. 2003 May;4(5):491-6. 10.1038/ni921 PubMed 12692549
