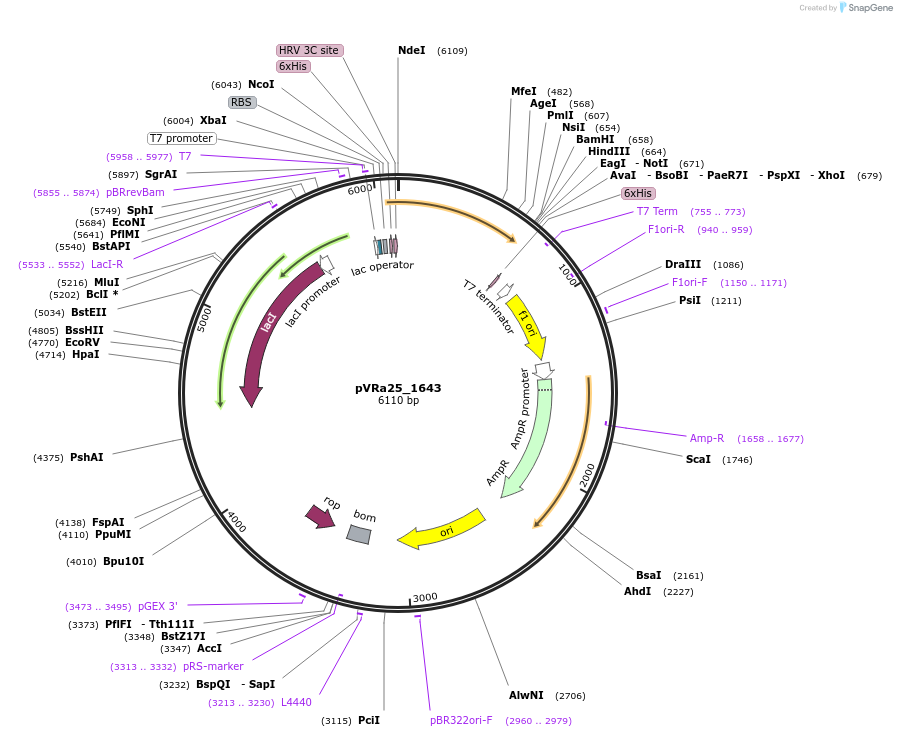

pVRa25_1643
(Plasmid #49677)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 49677 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    ECF25_1643
  • Species
    Nostoc sp. PCC 7120
  • Mutation
    Codon optimized for E.coli
  • Promoter pT7-lacO
  • Tag / Fusion Protein
    • His6-PreScission (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CGATATAGGCGCCAGCAAC
  • 3′ sequencing primer CAGCAGCCAACTCAGCTTC
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pVRa25_1643 was a gift from Christopher Voigt (Addgene plasmid # 49677 ; http://n2t.net/addgene:49677 ; RRID:Addgene_49677)
  • For your References section:

    Design of orthogonal genetic switches based on a crosstalk map of sigmas, anti-sigmas, and promoters. Rhodius VA, Segall-Shapiro TH, Sharon BD, Ghodasara A, Orlova E, Tabakh H, Burkhardt DH, Clancy K, Peterson TC, Gross CA, Voigt CA. Mol Syst Biol. 2013 Oct 29;9:702. doi: 10.1038/msb.2013.58. 10.1038/msb.2013.58 PubMed 24169405
