pLYS5-SDHB-Flag
(Plasmid #50055)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 50055 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

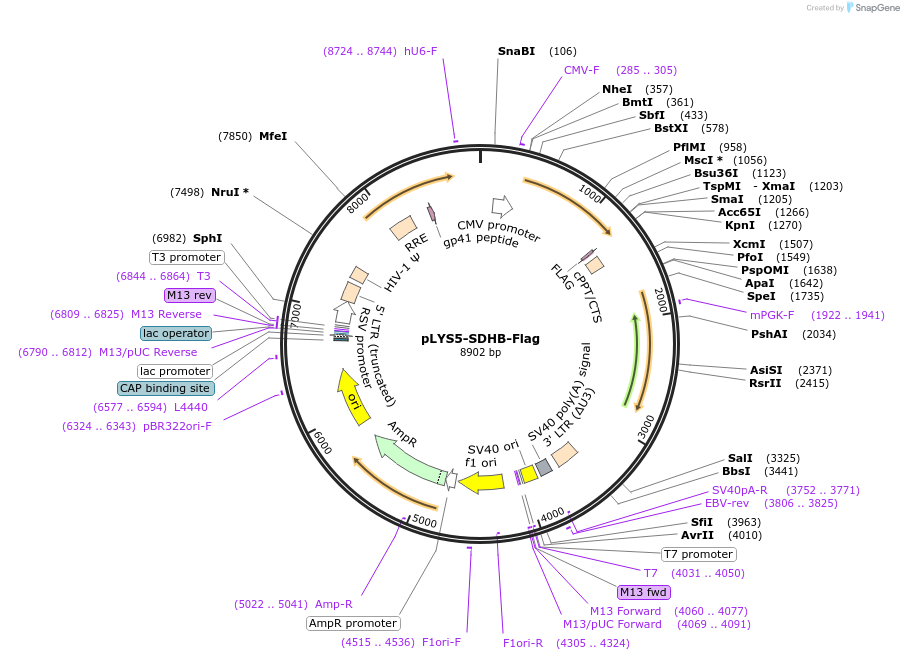

Backbone

  • Vector backbone
    pLYS5
  • Total vector size (bp) 8902
  • Modifications to backbone
    Flag tag C-terminal
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL10 Gold
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    SDHB
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    831
  • GenBank ID
    NM_003000
  • Entrez Gene
    SDHB (a.k.a. CWS2, IP, PGL4, SDH, SDH1, SDH2, SDHIP)
  • Tag / Fusion Protein
    • Flag (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nhe1 (not destroyed)
  • 3′ cloning site Xma1 (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer custom
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLYS5-SDHB-Flag was a gift from Vamsi Mootha (Addgene plasmid # 50055 ; http://n2t.net/addgene:50055 ; RRID:Addgene_50055)
  • For your References section:

    EMRE is an Essential Component of the Mitochondrial Calcium Uniporter Complex. Sancak Y, Markhard AL, Kitami T, Kovacs-Bogdan E, Kamer KJ, Udeshi ND, Carr SA, Chaudhuri D, Clapham DE, Li AA, Calvo SE, Goldberger O, Mootha VK. Science. 2013 Nov 14. 10.1126/science.1242993 PubMed 24231807
