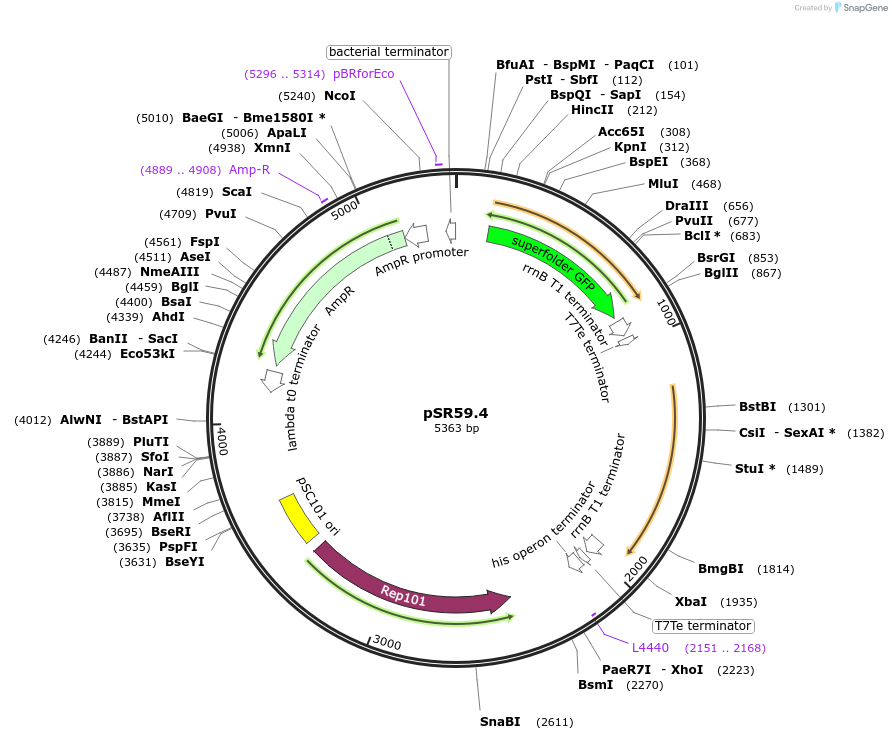

pSR59.4
(Plasmid #63175)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 63175 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pSB4A3
  • Backbone manufacturer
    Registry of Standard Biological Parts
  • Total vector size (bp) 5363
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    OmpR
  • Insert Size (bp)
    720
  • Entrez Gene
    ompR (a.k.a. b3405, ECK3392, cry, kmt, ompB)

Gene/Insert 2

  • Gene/Insert name
    sfGFP
  • Alt name
    Superfolder GFP
  • Species
    Synthetic
  • Insert Size (bp)
    720

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSR59.4 was a gift from Jeffrey Tabor (Addgene plasmid # 63175 ; http://n2t.net/addgene:63175 ; RRID:Addgene_63175)
  • For your References section:

    Refactoring and optimization of light-switchable escherichia coli two-component systems. Schmidl SR, Sheth RU, Wu A, Tabor JJ. ACS Synth Biol. 2014 Nov 21;3(11):820-31. doi: 10.1021/sb500273n. Epub 2014 Oct 11. 10.1021/sb500273n PubMed 25250630
