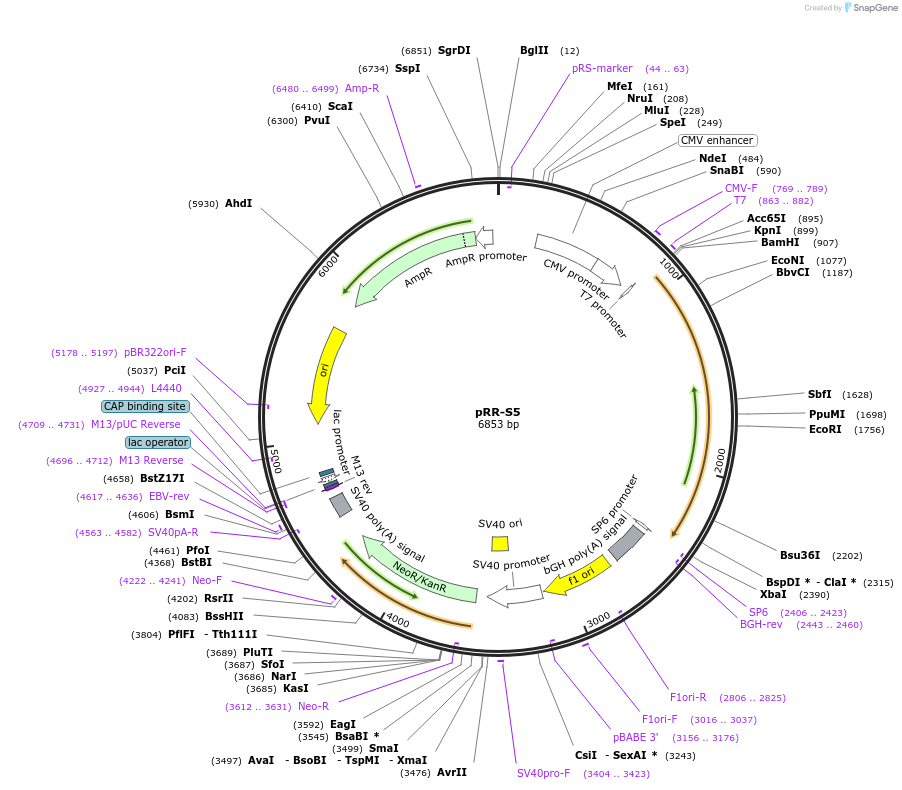

pRR-S5
(Plasmid #70001)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 70001 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5400
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CYP2B6
  • Alt name
    2B6.183G
  • Alt name
    cytochrome P450, family 2, subfamily B, polypeptide 6
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1500
  • Mutation
    T548G (V183G)
  • Entrez Gene
    CYP2B6 (a.k.a. CPB6, CYP2B, CYP2B7, CYP2B7P, CYPIIB6, EFVM, IIB1, P450)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH-rev
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRR-S5 was a gift from Kathrin Klein (Addgene plasmid # 70001 ; http://n2t.net/addgene:70001 ; RRID:Addgene_70001)
  • For your References section:

    Novel CYP2B6 enzyme variants in a Rwandese population: functional characterization and assessment of in silico prediction tools. Radloff R, Gras A, Zanger UM, Masquelier C, Arumugam K, Karasi JC, Arendt V, Seguin-Devaux C, Klein K. Hum Mutat. 2013 May;34(5):725-34. doi: 10.1002/humu.22295. Epub 2013 Mar 11. 10.1002/humu.22295 PubMed 23418033
