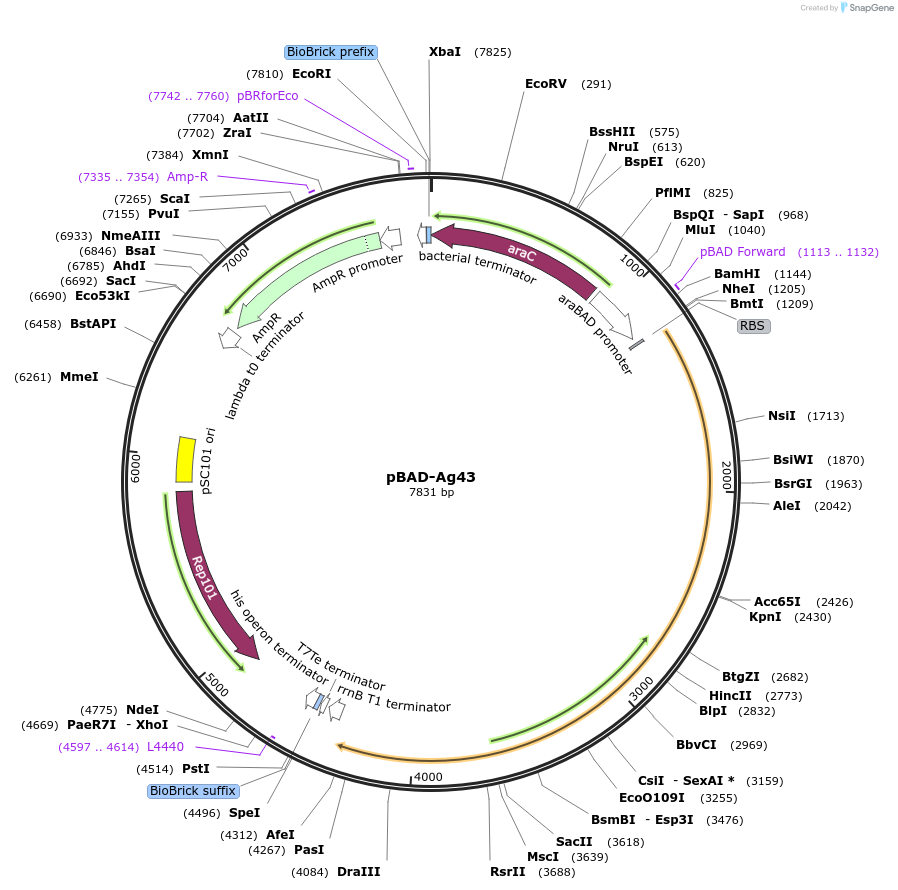

pBAD-Ag43
(Plasmid #107743)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 107743 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    BBa_I0500-pSB4A3
  • Backbone manufacturer
    iGEM BioBricks
  • Backbone size w/o insert (bp) 4549
  • Total vector size (bp) 7833
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Ag43
  • Alt name
    flu
  • Insert Size (bp)
    3284
  • Mutation
    removed all pstI cut sites with silent mutations, added RBS and terminator
  • Entrez Gene
    flu (a.k.a. b2000, ECK1993, agn, agn43, yeeQ, yzzX)
  • Promoter pBAD

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (destroyed during cloning)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer attaccgcctttgagtgagc
  • 3′ sequencing primer GCGGTCGGTCGATAAAAAAATCG
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    iGEM BioBricks BBa_K346007
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
  • Article Citing this Plasmid

Depositor Comments

Ag43 contains a G981S variant compared to the NCBI reference (WP_000820410.1); plasmid functions as described in the associated publication.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD-Ag43 was a gift from Ingmar Riedel-Kruse (Addgene plasmid # 107743 ; http://n2t.net/addgene:107743 ; RRID:Addgene_107743)
  • For your References section:

    Biofilm Lithography enables high-resolution cell patterning via optogenetic adhesin expression. Jin X, Riedel-Kruse IH. Proc Natl Acad Sci U S A. 2018 Apr 3;115(14):3698-3703. doi: 10.1073/pnas.1720676115. Epub 2018 Mar 19. 10.1073/pnas.1720676115 PubMed 29555779
