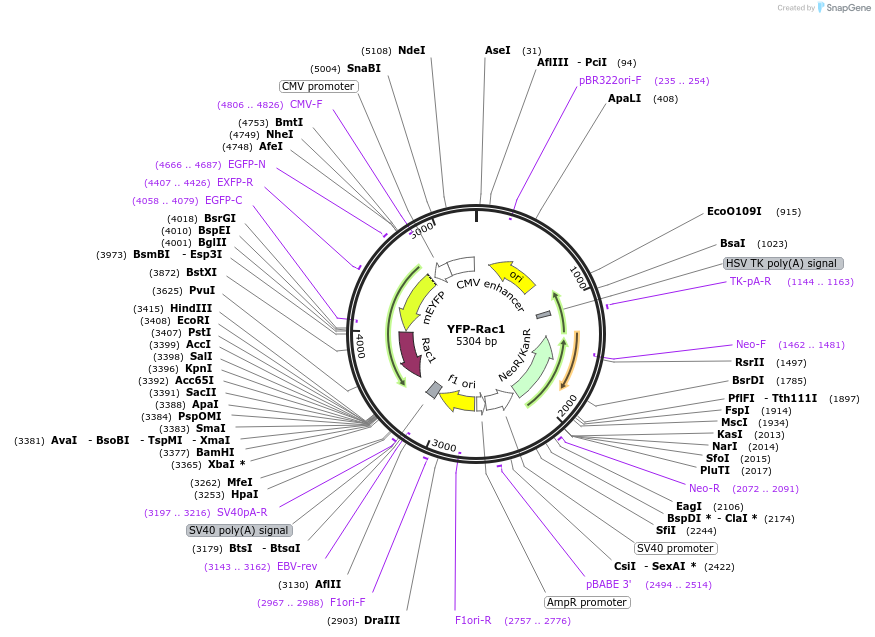

YFP-Rac1
(Plasmid #11391)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 11391 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 11391-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 11391-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pEYFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4731
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ras-related C3 botulinum toxin substrate 1
  • Alt name
    Rac1
  • Alt name
    YFP
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    580
  • GenBank ID
    AF498964
  • Entrez Gene
    RAC1 (a.k.a. MIG5, MRD48, Rac-1, TC-25, p21-Rac1)
  • Tag / Fusion Protein
    • YFP (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CCTGAGCAAAGACCCCAACGAGAA
  • 3′ sequencing primer CAGGGGGAGGTGTGGGAGGTTT
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Human Rac1 cDNA was a gift from Klaus Hahn.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Expresses Rac1 with an N-terminal YFP marker. YFP is the monomeric (A207K) version of Citrine, a pH-insensitive YFP.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YFP-Rac1 was a gift from Joel Swanson (Addgene plasmid # 11391 ; http://n2t.net/addgene:11391 ; RRID:Addgene_11391)

  • For your References section:

    Cdc42, Rac1, and Rac2 display distinct patterns of activation during phagocytosis. Hoppe AD, Swanson JA. Mol Biol Cell 2004 Aug;15(8):3509-19. Epub 2004 May 28. 10.1091/mbc.e03-11-0847 PubMed 15169870
