pcDNA 3.3 ss-V5-hFZD4 (aa 37-537)
(Plasmid
#115787)
-
PurposeExpresses human FZD4 with N-terminal V5-tag in mammalian cells, contains artificial signal sequence upstream of tag.
-
Depositing Lab
-
Depositing OrganizationUniversity of Colorado, Boulder
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 115787 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 115787-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 115787-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.3 TOPO TA
- Backbone size w/o insert (bp) 5407
- Total vector size (bp) 7047
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameFZD4
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1640
-
Entrez GeneFZD4 (a.k.a. CD344, EVR1, FEVR, FZD4S, Fz-4, Fz4, FzE4, GPCR, hFz4)
- Promoter CMV
-
Tag
/ Fusion Protein
- V5 (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XbaI (not destroyed)
- 3′ cloning site AgeI (not destroyed)
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
- 3′ sequencing primer CTTCCGTGTTTCAGTTAGC
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byImage clone 5199771
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
N-terminal V5 tag has no substantial effect in TOPFlash reporter assays induced with Norrin, compared to untagged control. TOPFlash reporter assay can be inhibited by transfection of too much of this plasmid (see Lai et al., 2017 for detailed description of transfection conditions).
DNA (Catalog # 115787-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 115787-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA 3.3 ss-V5-hFZD4 (aa 37-537) was a gift from Harald Junge (Addgene plasmid # 115787 ; http://n2t.net/addgene:115787 ; RRID:Addgene_115787) -
For your References section:
TSPAN12 Is a Norrin Co-receptor that Amplifies Frizzled4 Ligand Selectivity and Signaling. Lai MB, Zhang C, Shi J, Johnson V, Khandan L, McVey J, Klymkowsky MW, Chen Z, Junge HJ. Cell Rep. 2017 Jun 27;19(13):2809-2822. doi: 10.1016/j.celrep.2017.06.004. 10.1016/j.celrep.2017.06.004 PubMed 28658627

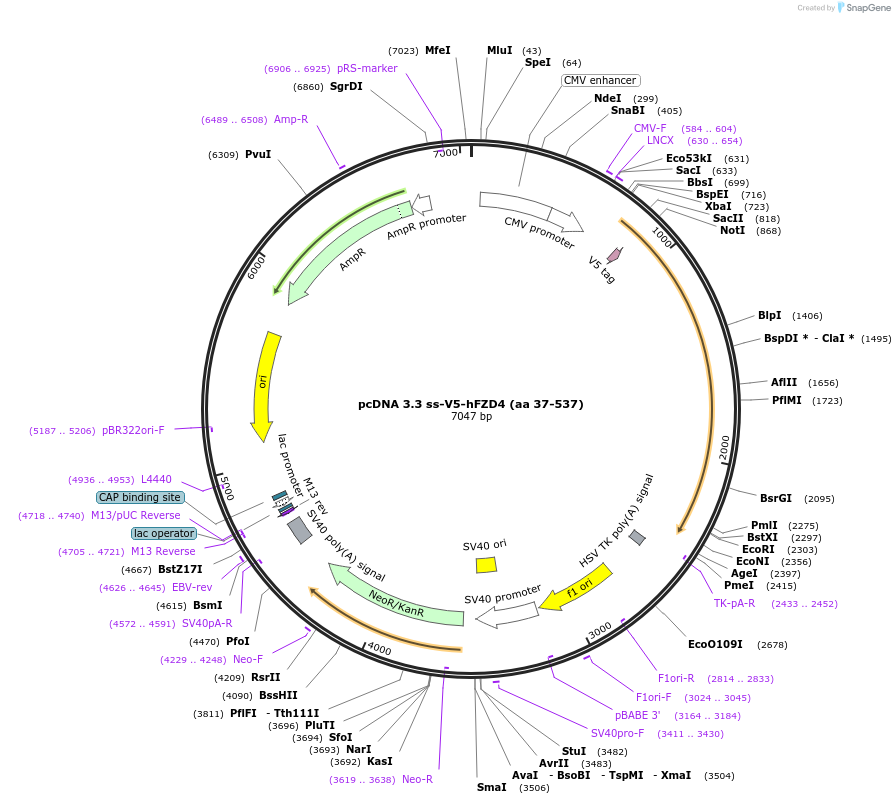

Map uploaded by the depositor.
