PurposeC-terminally tagged STING with split Venus Construct for studying localisation of STING in different cellular compartments
-
Depositing Lab
-
Depositing OrganizationUniversity of Edinburgh
Located in United Kingdom of Great Britain and Northern Ireland -
Publication
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 124264 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 124264-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 124264-D100 | 100 μg of DNA in Tris buffer | $585 | ||

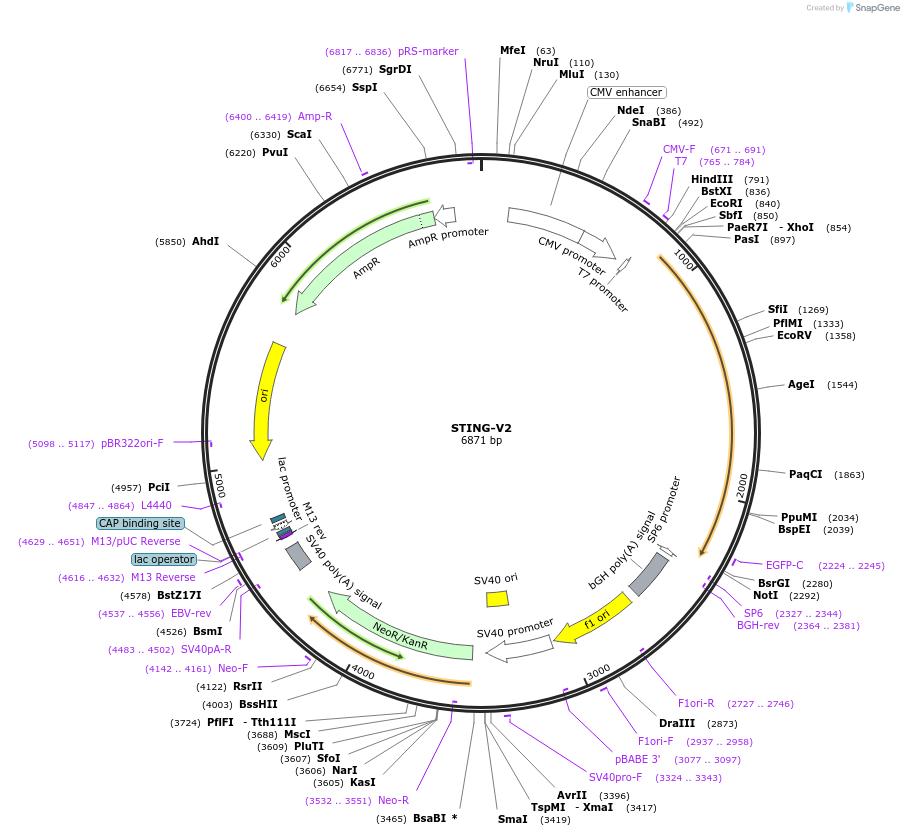

Backbone
-
Vector backbonepCDNA3
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTMEM173
-
Alt nameSTING
-
Alt nameNET23
-
SpeciesH. sapiens (human)
-
Entrez GeneSTING1 (a.k.a. ERIS, MITA, MPYS, NET23, SAVI, STING, STING-beta, TMEM173, hMITA, hSTING)
-
Tag
/ Fusion Protein
- Venus2 (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
A portion of this plasmid was derived from a plasmid made bySTING IMAGE clone came from RZPD - German Science Centre for Genome Research in 2004. Split Venus plasmids (V1/V2) were a gift from Patrick Heun 2018 (WCCB, Edinburgh)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 124264-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 124264-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
STING-V2 was a gift from Eric Schirmer (Addgene plasmid # 124264 ; http://n2t.net/addgene:124264 ; RRID:Addgene_124264)
