pLX307/PTPN11 E76G
(Plasmid
#140862)
-
Purposeexpresses PTPN11 E76G
-
Depositing Lab
-
Depositing OrganizationDana-Farber Cancer Institute
Located in United States of America -

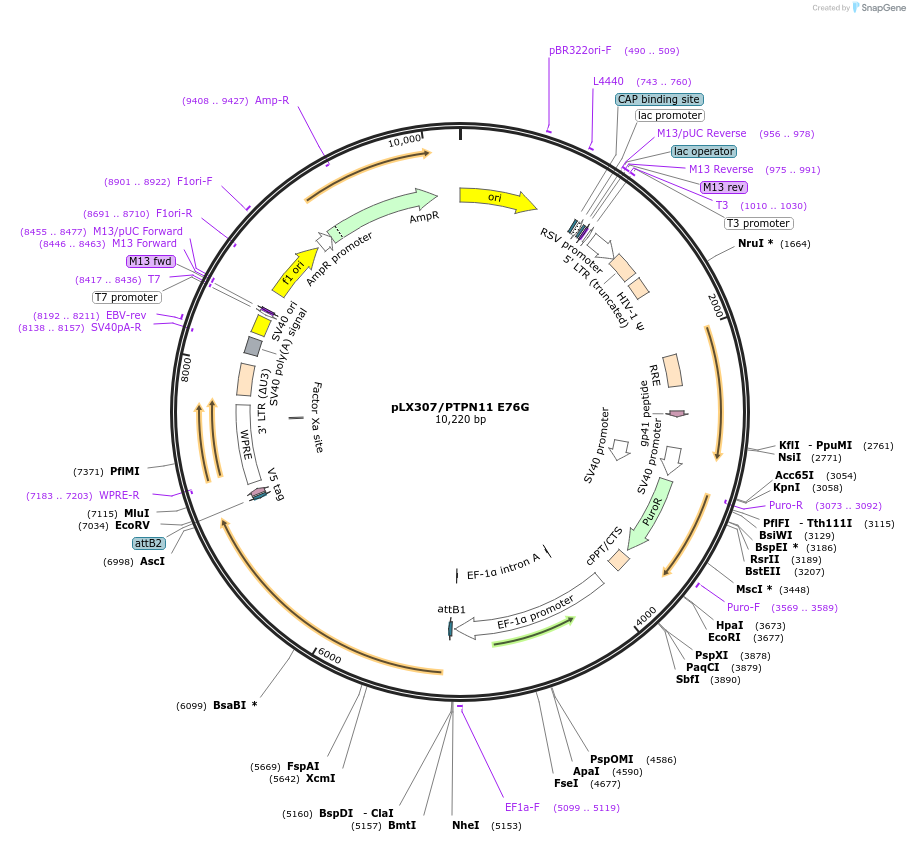

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 140862 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 140862-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 140862-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepLX307
- Backbone size w/o insert (bp) 10065
- Total vector size (bp) 10500
-
Vector typeMammalian Expression
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePTPN11 protein tyrosine phosphatase non-receptor type 11 [ Homo sapiens (human) ]
-
Alt nameCFC; NS1; JMML; SHP2; BPTP3; PTP2C; METCDS; PTP-1D; SH-PTP2; SH-PTP3
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1700
-
MutationE76G
-
GenBank IDNM_002834
-
Entrez GenePTPN11 (a.k.a. BPTP3, CFC, JMML, METCDS, NS1, PTP-1D, PTP2C, SH-PTP2, SH-PTP3, SHP2)
- Promoter EF1a
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer EF1a_F
- 3′ sequencing primer WPRE
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 140862-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 140862-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLX307/PTPN11 E76G was a gift from Kimberly Stegmaier (Addgene plasmid # 140862 ; http://n2t.net/addgene:140862 ; RRID:Addgene_140862) -
For your References section:
Resistance Mechanisms to SYK Inhibition in Acute Myeloid Leukemia. Cremer A, Ellegast JM, Alexe G, Frank ES, Ross L, Chu SH, Pikman Y, Robichaud A, Goodale A, Haupl B, Mohr S, Rao AV, Walker AR, Blachly JS, Piccioni F, Armstrong SA, Byrd JC, Oellerich T, Stegmaier K. Cancer Discov. 2020 Feb;10(2):214-231. doi: 10.1158/2159-8290.CD-19-0209. Epub 2019 Nov 26. 10.1158/2159-8290.CD-19-0209 PubMed 31771968
