TFORF2402
(Plasmid #142413)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 142413 Standard format: Plasmid sent in bacteria as agar stab 1 $85

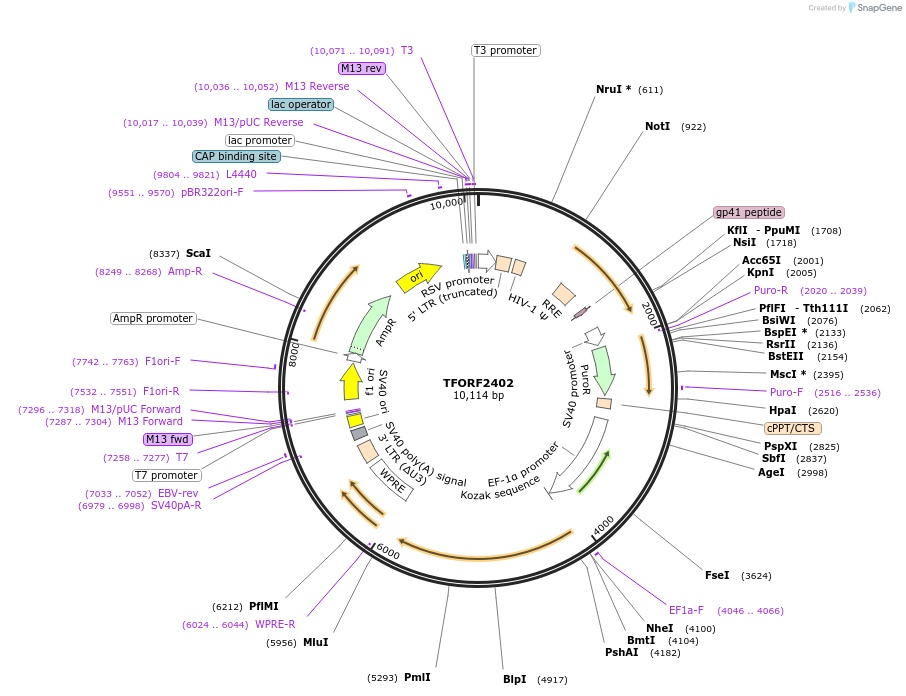

Backbone

  • Vector backbone
    pLX_TRC317
  • Backbone manufacturer
    Broad Institute Genetic Perturbation Platform
  • Backbone size w/o insert (bp) 8264
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NFE2L2
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1850
  • Entrez Gene
    NFE2L2 (a.k.a. HEBP1, IMDDHH, NRF2, Nrf-2)
  • Promoter EF1a

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer GGGTGGAGACTGAAGTTAGGCCAG
  • 3′ sequencing primer CACATAGCGTAAAAGGAGCAACATAG
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

NM_001145413,ENST00000446151 . The transcription factor ORF portion of this plasmid was synthesized by Genewiz. Please test multiple small colonies in case of plasmid recombination. To make this collection available in a timely manner, a portion of this collection was not fully sequenced by Addgene. If an Addgene verified full plasmid sequence is not available, please contact us at [email protected] prior to placing an order to request the full sequence.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    TFORF2402 was a gift from Feng Zhang (Addgene plasmid # 142413 ; http://n2t.net/addgene:142413 ; RRID:Addgene_142413)
  • For your References section:

    A transcription factor atlas of directed differentiation. Joung J, Ma S, Tay T, Geiger-Schuller KR, Kirchgatterer PC, Verdine VK, Guo B, Arias-Garcia MA, Allen WE, Singh A, Kuksenko O, Abudayyeh OO, Gootenberg JS, Fu Z, Macrae RK, Buenrostro JD, Regev A, Zhang F. Cell. 2023 Jan 5;186(1):209-229.e26. doi: 10.1016/j.cell.2022.11.026. 10.1016/j.cell.2022.11.026 PubMed 36608654
