SNS-GFP
(Plasmid #163662)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 163662 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 163662-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 163662-D100 100 μg of DNA in Tris buffer $585
Add to Cart

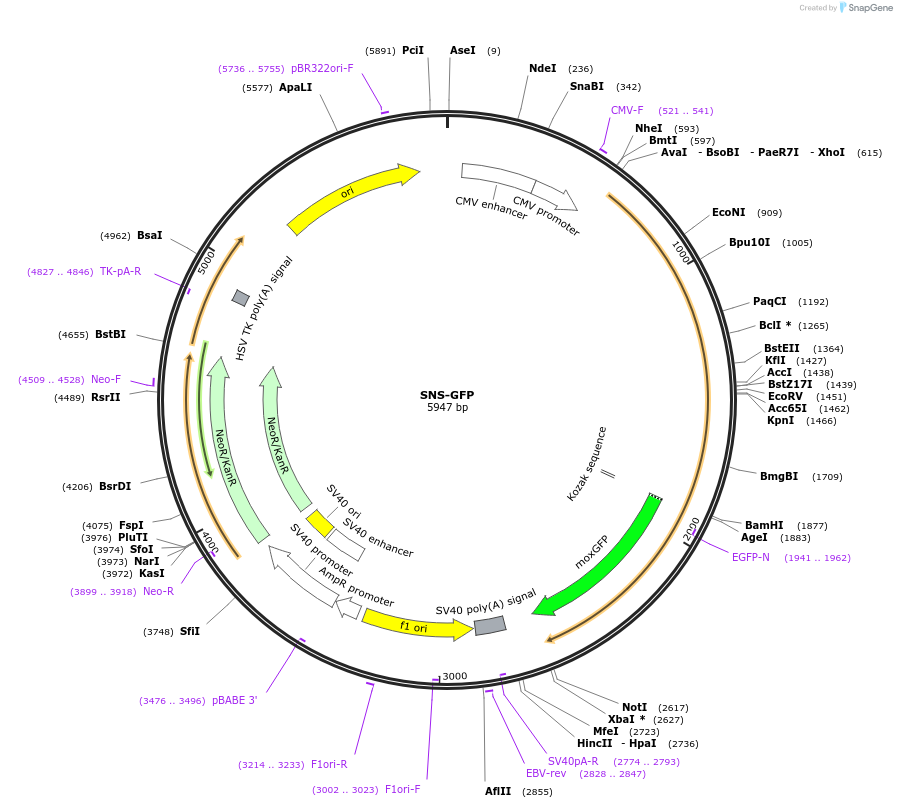

Backbone

  • Vector backbone
    pmoxGFP-N1
  • Backbone manufacturer
    E. Snapp (Addgene plasmid # 68070)
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5948
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ST6 beta-galactoside alpha-2,6-sialyltransferase 1 and tumor necrosis factor
  • Alt name
    ST6GAL1 and TNF
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1248
  • Mutation
    This chimera contains the cytosolic tail from ST, TMD from TNF and luminal domain from ST.
  • GenBank ID
    BC040009
  • Entrez Gene
    ST6GAL1 (a.k.a. CDw75, SIAT1, ST6GalI, ST6N)
  • Entrez Gene
    TNF (a.k.a. DIF, IMD127, TNF-alpha, TNFA, TNFSF2, TNLG1F)
  • Tag / Fusion Protein
    • GFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV-F
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    SNS-GFP was a gift from Lei Lu (Addgene plasmid # 163662 ; http://n2t.net/addgene:163662 ; RRID:Addgene_163662)

  • For your References section:

    A quantitative study of the Golgi retention of glycosyltransferases. Sun X, Mahajan D, Chen B, Song Z, Lu L. J Cell Sci. 2021 Oct 15;134(20). pii: 272560. doi: 10.1242/jcs.258564. Epub 2021 Oct 21. 10.1242/jcs.258564 PubMed 34533190
