pcDNA3.1-CD81-(TEV)-FKBP-SmBiT
(Plasmid
#182651)
-
Purposehuman CD81-TEV cleavage site-FKBP-SmBiT tag
-
Depositing Lab
-
Depositing OrganizationThe University of Osaka
Located in Japan -

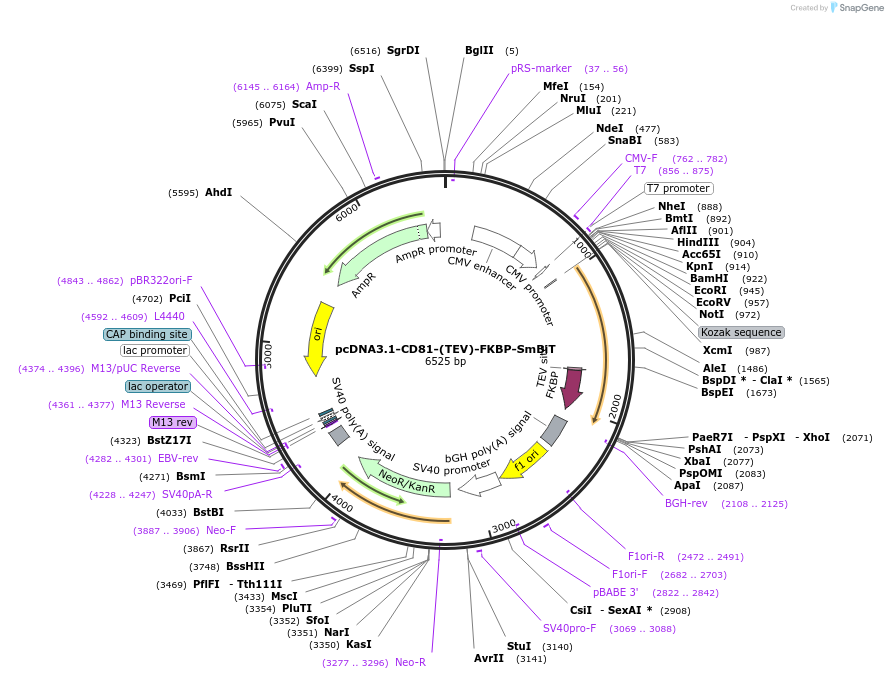

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 182651 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 182651-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 182651-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.1
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehuman CD81-TEVp cleavage site-FKBP-SmBiT
-
SpeciesH. sapiens (human), Synthetic
-
Entrez GeneCD81 (a.k.a. CVID6, S5.7, TAPA1, TSPAN28)
- Promoter CMV
-
Tag
/ Fusion Protein
- SmBiT (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F
- 3′ sequencing primer BGH-R
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2021.11.04.466099v1 for bioRxiv preprint.
DNA (Catalog # 182651-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 182651-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1-CD81-(TEV)-FKBP-SmBiT was a gift from Masaharu Somiya (Addgene plasmid # 182651 ; http://n2t.net/addgene:182651 ; RRID:Addgene_182651) -
For your References section:
Engineering of Extracellular Vesicles for Small Molecule-Regulated Cargo Loading and Cytoplasmic Delivery of Bioactive Proteins. Somiya M, Kuroda S. Mol Pharm. 2022 May 20. doi: 10.1021/acs.molpharmaceut.2c00192. 10.1021/acs.molpharmaceut.2c00192 PubMed 35594496
