CF-PIPKi
(Plasmid #20158)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 20158 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 20158-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 20158-D100 100 μg of DNA in Tris buffer $585
Add to Cart

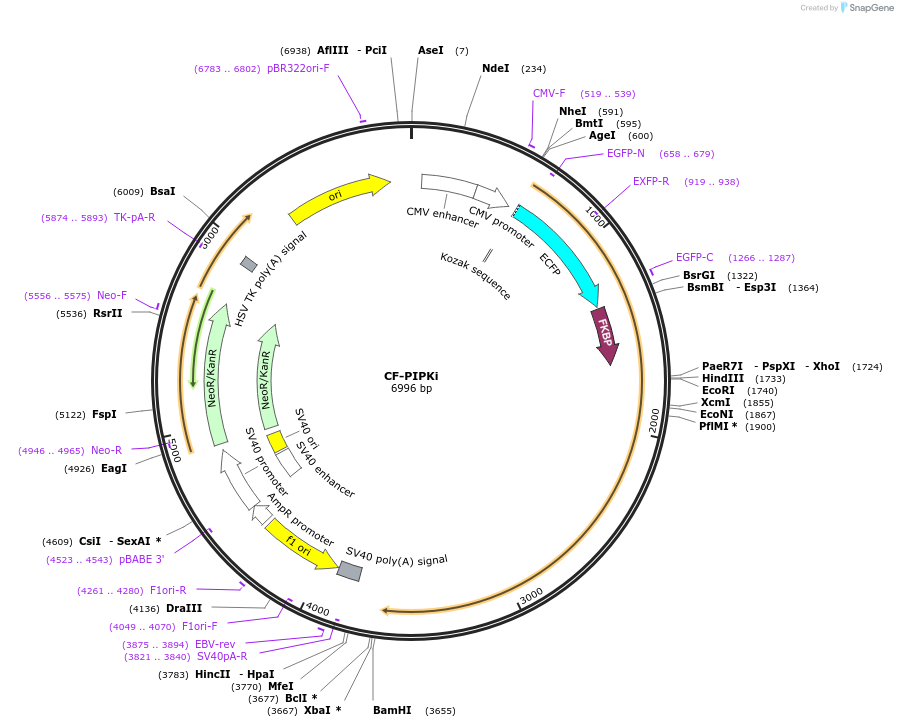

Backbone

  • Vector backbone
    ECFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4733
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CFP-FKBP-PIPK (D253A)
  • Alt name
    PIPK
  • Species
    M. musculus (mouse)
  • Mutation
    D253A mutation in PIPK. C-terminus (amino acids 636-661)truncated, R445E, K446E, S264A
  • GenBank ID
    NM_008844
  • Entrez Gene
    Pip5k1c (a.k.a. AI115456, AI835305, Pip5kIgamma)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoR1 (not destroyed)
  • 3′ cloning site BamH1 (not destroyed)
  • 5′ sequencing primer n/a
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CF-PIPKi was a gift from Tobias Meyer (Addgene plasmid # 20158 ; http://n2t.net/addgene:20158 ; RRID:Addgene_20158)

  • For your References section:

    Rapid chemically induced changes of PtdIns(4,5)P2 gate KCNQ ion channels. Suh BC, Inoue T, Meyer T, Hille B. Science. 2006 Dec 1. 314(5804):1454-7. 10.1126/science.1131163 PubMed 16990515
