pvimentin-ffDronpaF
(Plasmid
#214607)
-
PurposeExpresses reversibly switchable fluorescent protein ffDronpaF targeted to vimentin
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 214607 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonefrom pEGFP-N1
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameffDronpaF-vimentin
-
Insert Size (bp)676
- Promoter CMV
-
Tag
/ Fusion Protein
- target to vimentin (human) (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHi (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer GCAAATGGGCGGTAGGCGT
- 3′ sequencing primer AACCATTATAAGCTGCAATAAAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pvimentin-ffDronpaF was a gift from Peter Dedecker (Addgene plasmid # 214607 ; http://n2t.net/addgene:214607 ; RRID:Addgene_214607) -
For your References section:
Per-pixel unmixing of spectrally overlapping fluorophores using intra-exposure excitation modulation. Valenta H, Bierbuesse F, Vitale R, Ruckebusch C, Vandenberg W, Dedecker P. Talanta. 2024 Mar 10.1016/j.talanta.2023.125397 PubMed 38048682

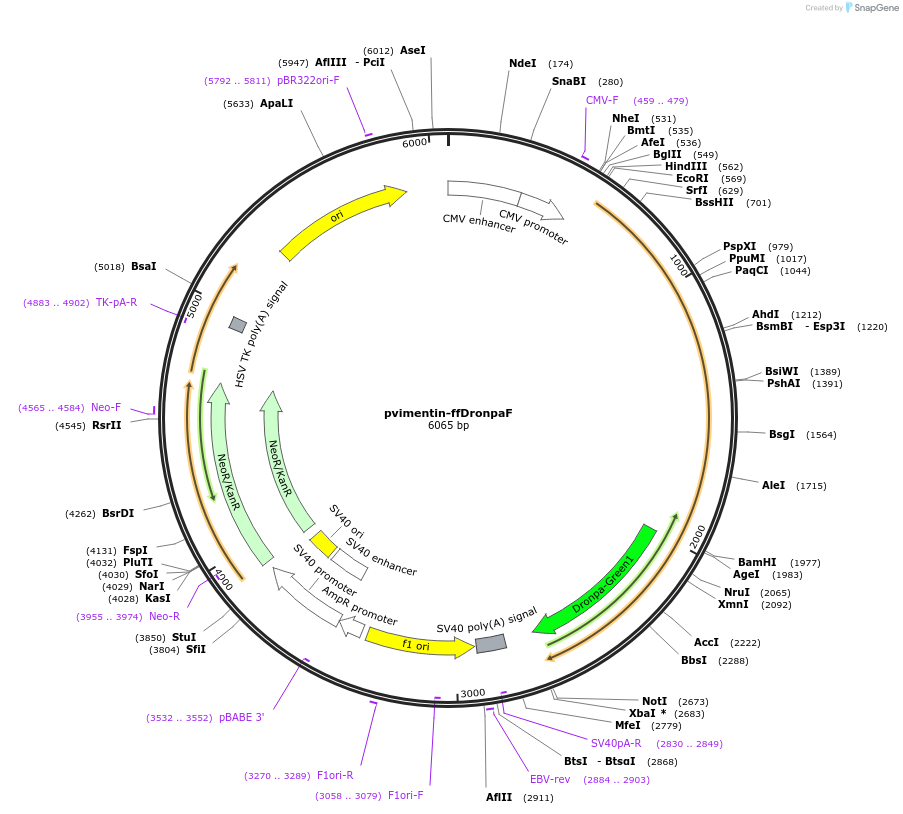

Map uploaded by the depositor.
