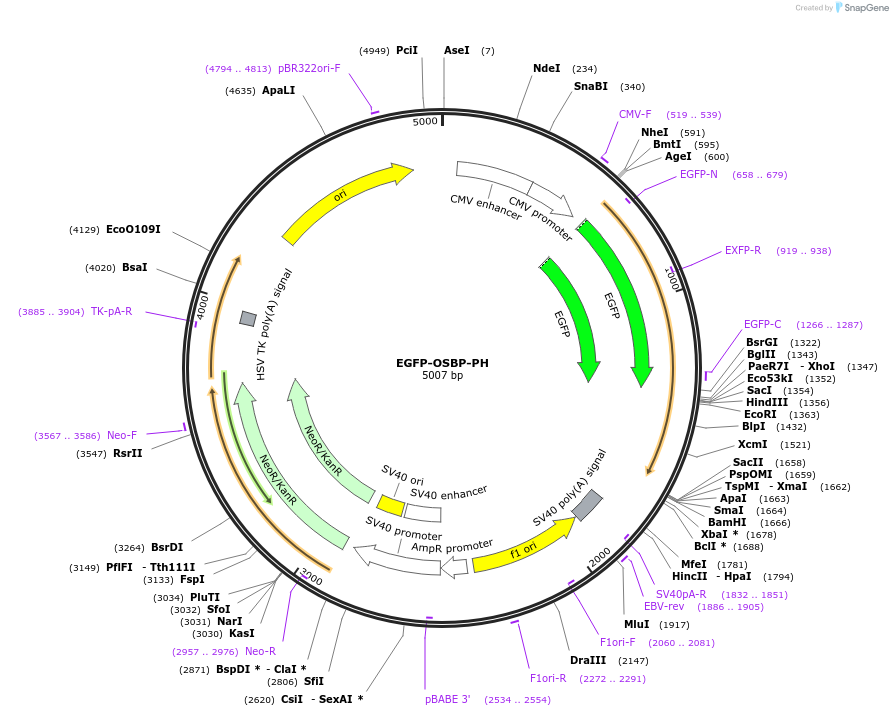

EGFP-OSBP-PH
(Plasmid #49571)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 49571 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    EGFP C2
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5000
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    OSBP-PH (AA 91-179)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    300
  • GenBank ID
    NM_002556.2
  • Entrez Gene
    OSBP (a.k.a. OSBP1)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site XhoI/SalI (destroyed during cloning)
  • 5′ sequencing primer EGFP C (CATGGTCCTGCTGGAGTTCGTG)
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    OSBP derived from cMV6-XL6-OSBP purchased from Origene

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    EGFP-OSBP-PH was a gift from Marci Scidmore (Addgene plasmid # 49571 ; http://n2t.net/addgene:49571 ; RRID:Addgene_49571)
  • For your References section:

    Multiple host proteins that function in phosphatidylinositol-4-phosphate metabolism are recruited to the chlamydial inclusion. Moorhead AM, Jung JY, Smirnov A, Kaufer S, Scidmore MA. Infect Immun. 2010 May;78(5):1990-2007. doi: 10.1128/IAI.01340-09. Epub 2010 Mar 15. 10.1128/IAI.01340-09 PubMed 20231409
