PurposeSSR2.0 has two target sites in opposite orientation for generate only one cycle of repairing after I-SceI endonuclease expression.
-
Depositing Lab
-
Depositing OrganizationCentro Andaluz de Biologia Molecular y Medicina Regenerativa (CABIMER)
Located in Spain -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 50393 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 50393-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 50393-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-C1
- Backbone size w/o insert (bp) 4731
- Total vector size (bp) 5769
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSSR2.0
-
SpeciesSynthetic
-
Insert Size (bp)1800
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site BamHI (not destroyed)
- 5′ sequencing primer CMV-F
- 3′ sequencing primer EGFP-N
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 50393-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 50393-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
SeeSaw Reporter (SSR2.0) was a gift from Pablo Huertas Sánchez (Addgene plasmid # 50393 ; http://n2t.net/addgene:50393 ; RRID:Addgene_50393) -
For your References section:
New tools to study DNA double-strand break repair pathway choice. Gomez-Cabello D, Jimeno S, Fernandez-Avila MJ, Huertas P. PLoS One. 2013 Oct 14;8(10):e77206. doi: 10.1371/journal.pone.0077206. 10.1371/journal.pone.0077206 PubMed 24155929

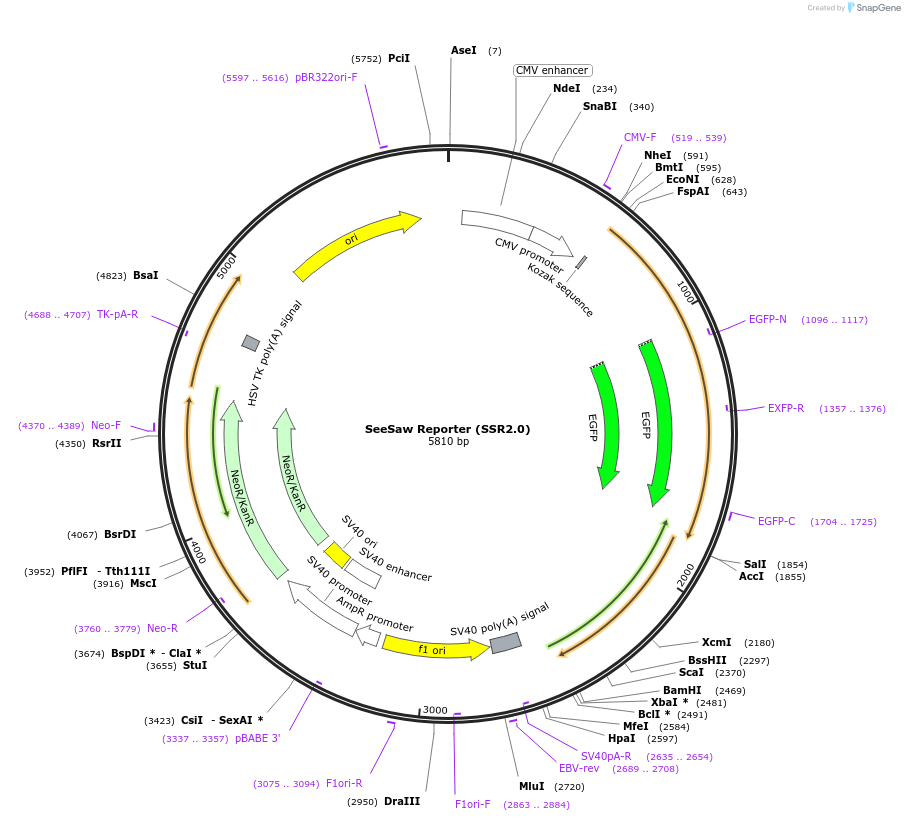

Map uploaded by the depositor.
