pCMV_mCherry_2A_HA_2xMS2-VP64
(Plasmid
#68419)
-
PurposeTransient expression of humanized MS2 (V75E/A81G), fused to the VP64 transcrption activator, in mammalian cells, under a CMV promoter
-
Depositing Lab
-
Depositing OrganizationHarvard University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 68419 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 68419-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 68419-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.1(+)
-
Backbone manufacturerLife Technologies
-
Vector typeMammalian Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMS2
-
MutationMS2: V75E/A81G
- Promoter CMV
-
Tags
/ Fusion Proteins
- HA (N terminal on insert)
- VP64 (C terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer DsRed1-C
- 3′ sequencing primer SV40pA-R
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
mCherry and MS2 cassettes are separated by a 2A peptide. NLS located between the MS2 and VP64 casettes. Contains two tandem copies of the MS2 protein, connected by a flexible linker
DNA (Catalog # 68419-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 68419-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCMV_mCherry_2A_HA_2xMS2-VP64 was a gift from John Rinn (Addgene plasmid # 68419 ; http://n2t.net/addgene:68419 ; RRID:Addgene_68419) -
For your References section:
Multiplexable, locus-specific targeting of long RNAs with CRISPR-Display. Shechner DM, Hacisuleyman E, Younger ST, Rinn JL. Nat Methods. 2015 Jul;12(7):664-70. doi: 10.1038/nmeth.3433. Epub 2015 Jun 1. 10.1038/nmeth.3433 PubMed 26030444

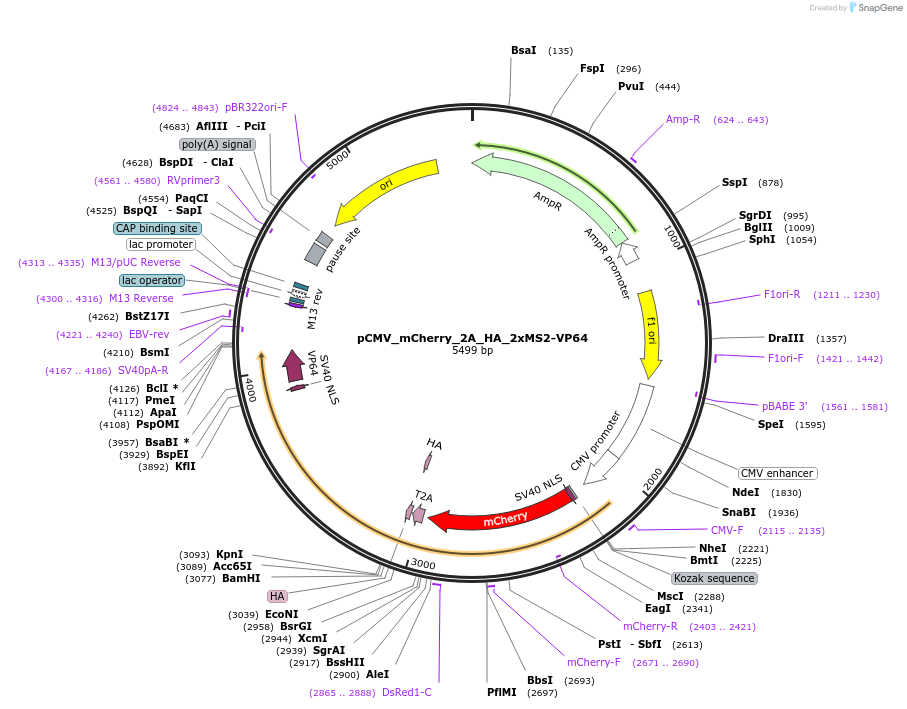

Map uploaded by the depositor.
