UKNP1.5.2
(Plasmid
#97368)
-
PurposeExpression of HCV E1E2 genes cloned from patient serum. United Kingdom Nottingham Panel x.xx.xx (genotype.patient number.clone number)
-
Depositing Lab
-
Depositing OrganizationUniversity of Nottingham
Located in United Kingdom of Great Britain and Northern Ireland -

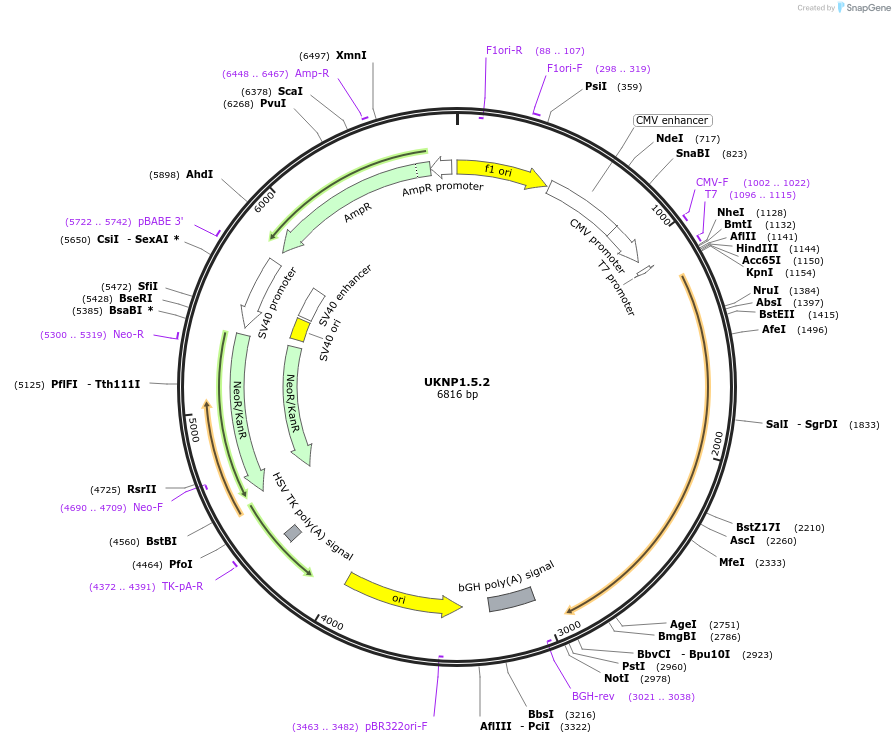

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 97368 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 97368-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 97368-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCR3
-
Backbone manufacturerInvitrogen
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHCV E1E2
-
Alt nameUKNP1.5.2
-
SpeciesHepatitis C virus
-
Insert Size (bp)1734
-
GenBank IDKU285164.1
Cloning Information
- Cloning method TOPO Cloning
- 5′ sequencing primer T7F
- 3′ sequencing primer bGHR
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 97368-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 97368-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
UKNP1.5.2 was a gift from Jonathan Ball (Addgene plasmid # 97368 ; http://n2t.net/addgene:97368 ; RRID:Addgene_97368) -
For your References section:
A Diverse Panel of Hepatitis C Virus Glycoproteins for Use in Vaccine Research Reveals Extremes of Monoclonal Antibody Neutralization Resistance. Urbanowicz RA, McClure CP, Brown RJ, Tsoleridis T, Persson MA, Krey T, Irving WL, Ball JK, Tarr AW. J Virol. 2015 Dec 23;90(7):3288-301. doi: 10.1128/JVI.02700-15. 10.1128/JVI.02700-15 PubMed 26699643
