pB-dCas9-PBE
(Plasmid
#98159)
-
PurposeExpresses CRISPR base editor in maize
-
Depositing Lab
-
Depositing OrganizationChinese Academy of Science (Inactive)
Located in China -

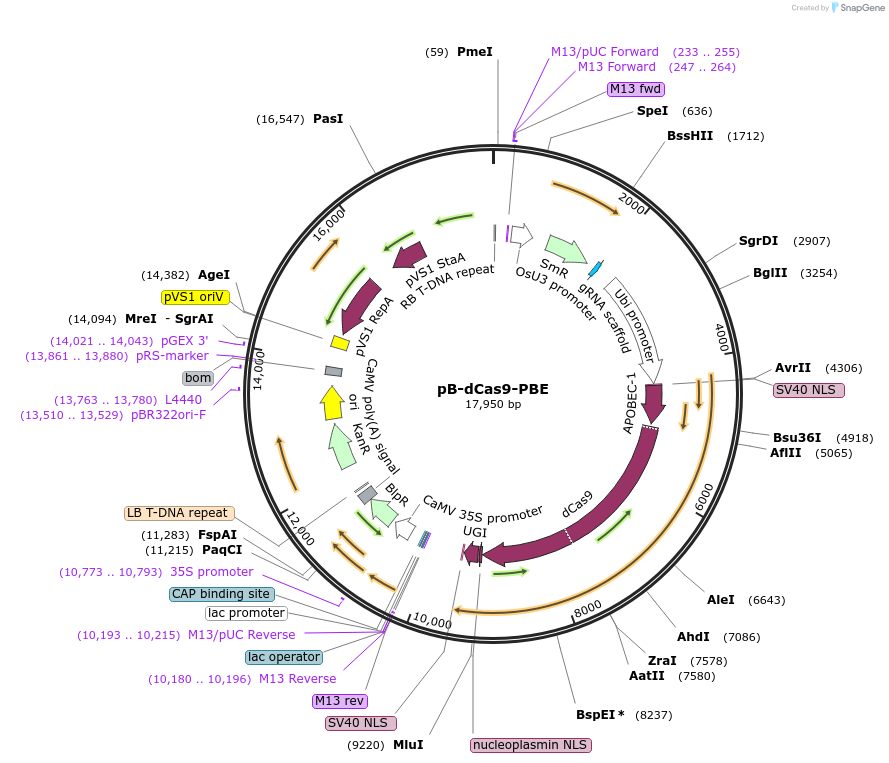

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 98159 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 98159-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 98159-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepBUE411
-
Vector typePlant Expression ; Maize
-
Selectable markersBasta
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameNLS-APOBEC1-XTEN-dCas9-UGI-NLS
- Promoter Ubi
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer Unknown
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byAPOBEC1, XTEN, dCas9 (D10A and H840A) and UGI sequences were codon-optimized for cereal plants, and synthesized commercially (GenScript, Nanjing, China).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 98159-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 98159-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pB-dCas9-PBE was a gift from Caixia Gao (Addgene plasmid # 98159 ; http://n2t.net/addgene:98159 ; RRID:Addgene_98159) -
For your References section:
Precise base editing in rice, wheat and maize with a Cas9-cytidine deaminase fusion. Zong Y, Wang Y, Li C, Zhang R, Chen K, Ran Y, Qiu JL, Wang D, Gao C. Nat Biotechnol. 2017 May;35(5):438-440. doi: 10.1038/nbt.3811. Epub 2017 Feb 27. 10.1038/nbt.3811 PubMed 28244994
