pM355
(Plasmid
#173175)
-
Purpose(Empty Backbone) Expresses gRNA-12xMBS from hU6 promoter
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 173175 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepGL3-Basic
-
Backbone manufacturerPromega
- Backbone size w/o insert (bp) 4837
- Total vector size (bp) 5248
-
Vector typeMammalian Expression, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namegRNA-12xMBS backbone
-
gRNA/shRNA sequenceEmpty
-
SpeciesSynthetic
- Promoter hU6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer cccttcaccgagggcctatttccc
- 3′ sequencing primer CTATTCTTTCCCCTGCACTGTACCC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pM355 was a gift from Hajin Kim (Addgene plasmid # 173175 ; http://n2t.net/addgene:173175 ; RRID:Addgene_173175) -
For your References section:
Background-suppressed live visualization of genomic loci with an improved CRISPR system based on a split fluorophore. Chaudhary N, Nho SH, Cho H, Gantumur N, Ra JS, Myung K, Kim H. Genome Res. 2020 Sep;30(9):1306-1316. doi: 10.1101/gr.260018.119. Epub 2020 Sep 4. 10.1101/gr.260018.119 PubMed 32887690

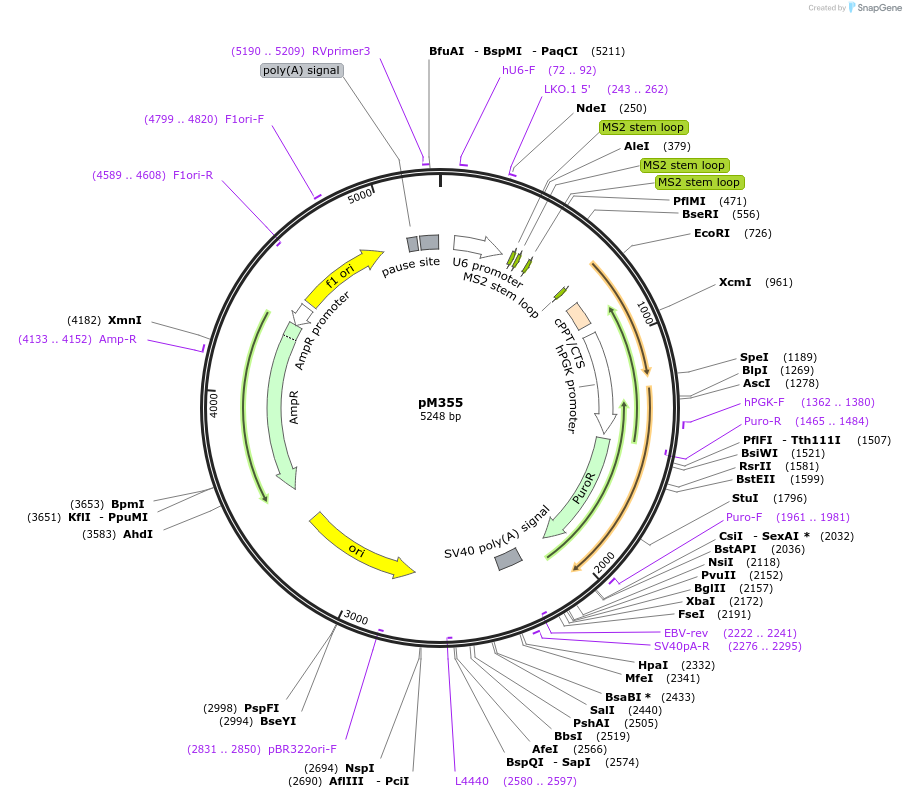

Map uploaded by the depositor.
