pUC57-mini v2-HF24_F5
(Plasmid
#195719)
-
PurposeThis plasmid carries a fragment from a 24-fragment lacI/lacZ cassette split that was designed as a Golden Gate assembly with high fidelity.
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 195719 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.

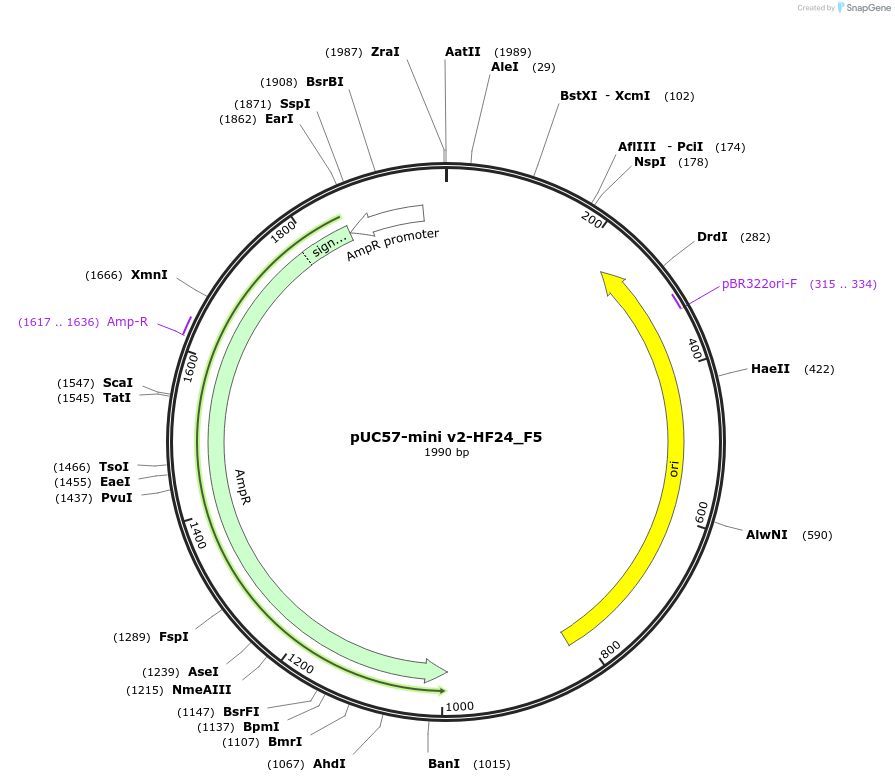

Backbone
-
Vector backbonepUC57-mini
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameFragment#5 of 24 fragment splits in lacI/lacZ cassette
-
SpeciesE.coli
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Unknown (unknown if destroyed)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUC57-mini v2-HF24_F5 was a gift from Eric Cantor (Addgene plasmid # 195719 ; http://n2t.net/addgene:195719 ; RRID:Addgene_195719) -
For your References section:
Comprehensive Profiling of Four Base Overhang Ligation Fidelity by T4 DNA Ligase and Application to DNA Assembly. Potapov V, Ong JL, Kucera RB, Langhorst BW, Bilotti K, Pryor JM, Cantor EJ, Canton B, Knight TF, Evans TC Jr, Lohman GJS. ACS Synth Biol. 2018 Nov 16;7(11):2665-2674. doi: 10.1021/acssynbio.8b00333. Epub 2018 Oct 29. 10.1021/acssynbio.8b00333 PubMed 30335370
