pM13-DDRFPB1
(Plasmid #36293)

Loading...
Available to Academic and Nonprofits Only

Backbone

  • Vector backbone
    pcDNA3.1+
  • Backbone manufacturer
    Life Technologies
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    High Copy

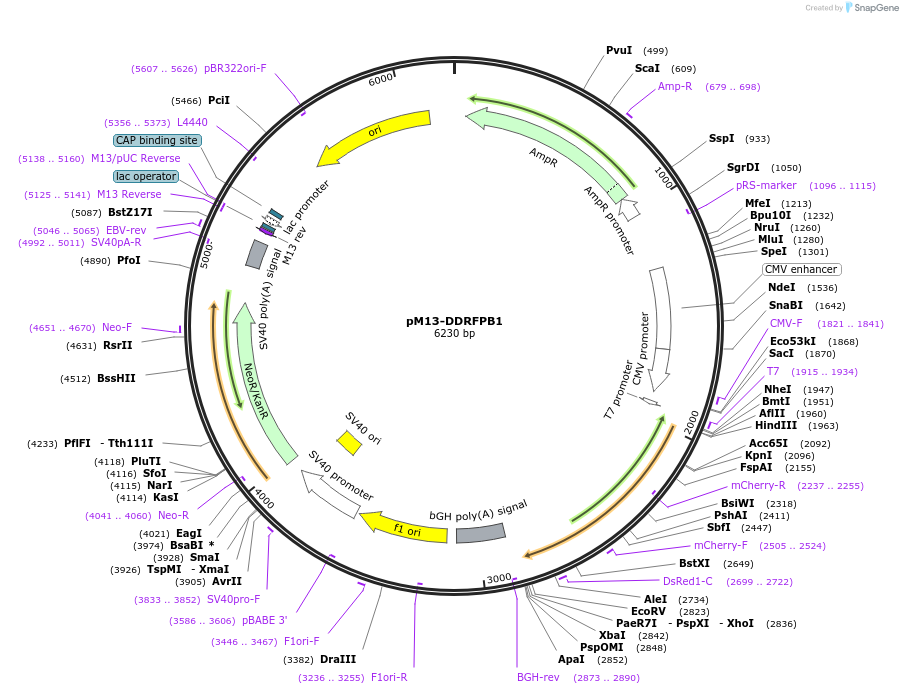

Sequence Information

Full plasmid sequence is available only if provided by the depositing laboratory.

Gene/Insert

  • Gene/Insert name
    M13-DDRFP-B1

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pM13-DDRFPB1 was a gift from Robert Campbell (Addgene plasmid # 36293)
  • For your References section:

    A fluorogenic red fluorescent protein heterodimer. Alford SC, Abdelfattah AS, Ding Y, Campbell RE. Chem Biol. 2012 Mar 23;19(3):353-60. 10.1016/j.chembiol.2012.01.006 PubMed 22444590
