pAAV-hSyn-EGFP
(Plasmid #50465)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 50465 Plasmid sent as bacteria in agar stab 1 $65
AAV2 50465-AAV2 Virus (100 µL at titer ≥ 3×10¹² vg/mL)
and Plasmid. More Information
$380
AAV5 50465-AAV5 Virus (100 µL at titer ≥ 3×10¹² vg/mL)
and Plasmid. More Information
$380
AAV8 50465-AAV8 Virus (100 µL at titer ≥ 3×10¹² vg/mL)
and Plasmid. More Information
$380
AAV Retrograde 50465-AAVrg Virus (100 µL at titer ≥ 7×10¹² vg/mL)
and Plasmid. More Information
$380

This material is available to academics and nonprofits only.

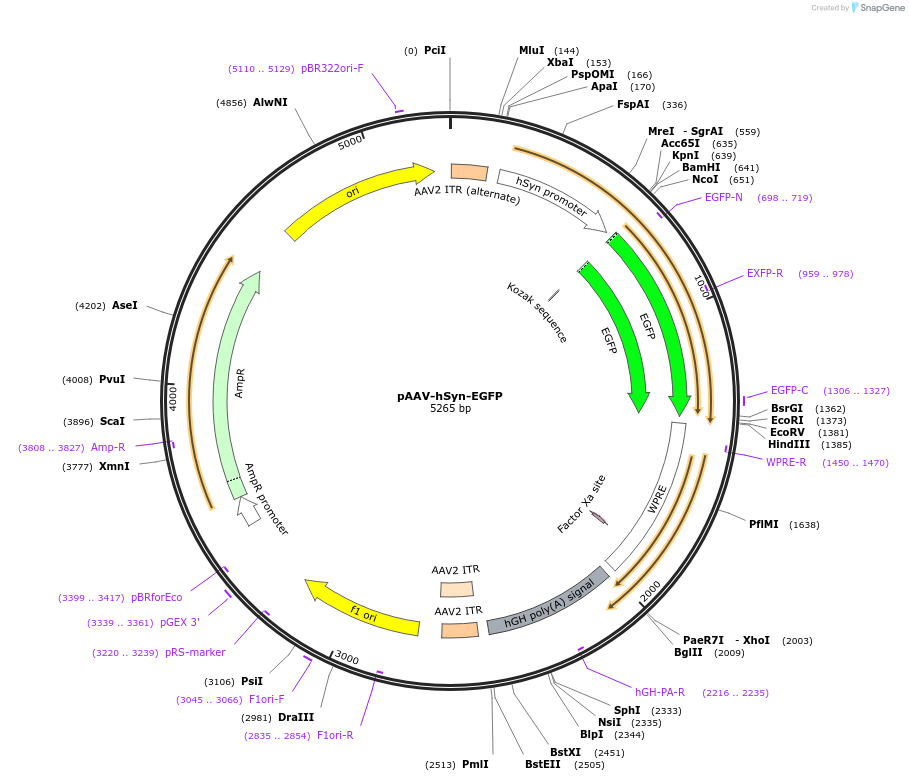

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 4818
  • Total vector size (bp) 5265
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    EGFP
  • Species
    Aequorea victoria
  • Insert Size (bp)
    726
  • Promoter human Synapsin 1
  • Tag / Fusion Protein
    • N/A

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamH I (not destroyed)
  • 3′ cloning site EcoR I (not destroyed)
  • 5′ sequencing primer TCGTGTCGTGCCTGAGAGCG
  • 3′ sequencing primer GCATTAAAGCAGCGTATCCACATAGC
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

Information for AAV2 (Catalog # 50465-AAV2) ( Back to top )

Purpose

Ready-to-use AAV2 particles produced from pAAV-hSyn-EGFP (#50465). In addition to the viral particles, you will also receive purified pAAV-hSyn-EGFP plasmid DNA.

Synapsin-driven EGFP-expression control. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 3×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV2 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV2
  • Purification CsCl gradient ultracentrifugation
  • Reporter Gene EGFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the DIO orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
  • Confirmation of protein expression: HeLa cells were transduced with 50465-AAV2 at 50,000 vg/cell. Ninety-six hours later, cells were visualized by direct fluorescence. GFP expression and brightfield were visualized at 10× and 20× magnification. You can view fluorescent images of GFP expression here or in the image section at the top of this page.

Visit our viral production page for more information.

Information for AAV5 (Catalog # 50465-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from pAAV-hSyn-EGFP (#50465). In addition to the viral particles, you will also receive purified pAAV-hSyn-EGFP plasmid DNA.

Synapsin-driven EGFP-expression control. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 3×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EGFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the DIO orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.

Visit our viral production page for more information.

Information for AAV8 (Catalog # 50465-AAV8) ( Back to top )

Purpose

Ready-to-use AAV8 particles produced from pAAV-hSyn-EGFP (#50465). In addition to the viral particles, you will also receive purified pAAV-hSyn-EGFP plasmid DNA.

Synapsin-driven EGFP-expression control. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 3×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV8 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV8
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EGFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the DIO orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
  • Next-generation sequencing of viral genome: Next-generation sequencing was performed on viral genomes that were isolated from the final viral preparation. Sequencing results were analyzed to confirm the identity and integrity of the viral genome and the absence of unexpected DNA contaminants.

Visit our viral production page for more information.

Information for AAV Retrograde (Catalog # 50465-AAVrg) ( Back to top )

Purpose

Ready-to-use AAV Retrograde particles produced from pAAV-hSyn-EGFP (#50465). In addition to the viral particles, you will also receive purified pAAV-hSyn-EGFP plasmid DNA.

Synapsin-driven EGFP-expression control. These AAV preparations are suitable purity for injection into animals. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV retrograde cap gene
    rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAVrg rAAV2-retro helper (plasmid #81070)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EGFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • Confirmation of protein expression: Neuro2A cells were transduced with 50465-AAVrg at ~700,000 vg/cell. Four days, GFP expression (green) was visualized by direct fluorescence.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
    • Transgene
      50465 For: AGCCGGACCGCACC
      50465 Rev: GTCGGGGTAGCGGCTGA

Visit our viral production page for more information.

Addgene Comments

Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-hSyn-EGFP was a gift from Bryan Roth (Addgene plasmid # 50465)
