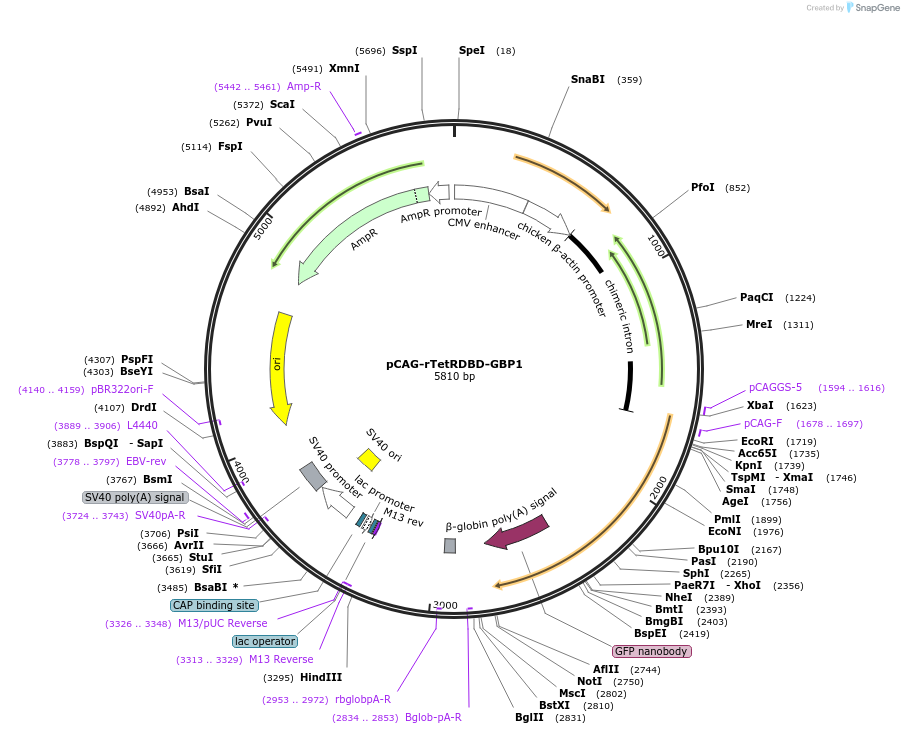

pCAG-rTetRDBD-GBP1
(Plasmid #50791)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 50791 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pCAG-GFP
  • Backbone size w/o insert (bp) 4823
  • Total vector size (bp) 5810
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    rTetR DNA binding domain-GBP1 fusion protein
  • Alt name
    rTetRDBD-GBP1
  • Alt name
    DBDG
  • Species
    Synthetic
  • Insert Size (bp)
    987
  • Promoter CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer GGACTTCCTTTGTCCCAAATCTG
  • 3′ sequencing primer TAGCCAGAAGTCAGATGCTC
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    pCAG-GFP, Cepko lab
  • Terms and Licenses
  • Article Citing this Plasmid

Depositor Comments

Tang J.C. et al. (2013). A nanobody-based system using fluorescent proteins as scaffolds for cell-specific gene manipulation. Cell. 2013 Aug 15;154(4):928-39.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG-rTetRDBD-GBP1 was a gift from Connie Cepko (Addgene plasmid # 50791 ; http://n2t.net/addgene:50791 ; RRID:Addgene_50791)
  • For your References section:

    A nanobody-based system using fluorescent proteins as scaffolds for cell-specific gene manipulation. Tang JC, Szikra T, Kozorovitskiy Y, Teixiera M, Sabatini BL, Roska B, Cepko CL. Cell. 2013 Aug 15;154(4):928-39. doi: 10.1016/j.cell.2013.07.021. 10.1016/j.cell.2013.07.021 PubMed 23953120
