pICSL12009
(Plasmid #68257)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 68257 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

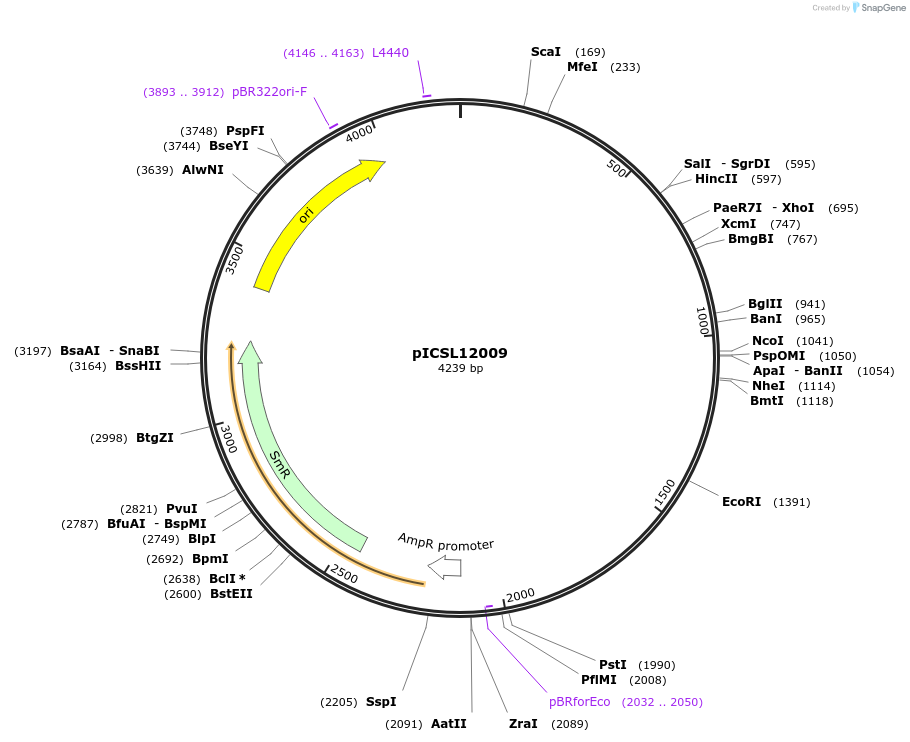

Backbone

  • Vector backbone
    pICH41295 AddGene #47997
  • Total vector size (bp) 4239
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Promoter and 5UTR Ubiquitin (Zea mays)
  • Alt name
    ZmUbi
  • Species
    Zea mays
  • Insert Size (bp)
    1992

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer CGTTATCCCCTGATTCTGTGGATAAC
  • 3′ sequencing primer GTCTCATGAGCGGATACATATTTGAATG
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pICSL12009 was a gift from Nicola Patron (Addgene plasmid # 68257 ; http://n2t.net/addgene:68257 ; RRID:Addgene_68257)
  • For your References section:

    Induction of targeted, heritable mutations in barley and Brassica oleracea using RNA-guided Cas9 nuclease. Lawrenson T, Shorinola O, Stacey N, Li C, Ostergaard L, Patron N, Uauy C, Harwood W. Genome Biol. 2015 Nov 30;16(1):258. doi: 10.1186/s13059-015-0826-7. 10.1186/s13059-015-0826-7 [pii] PubMed 26616834
