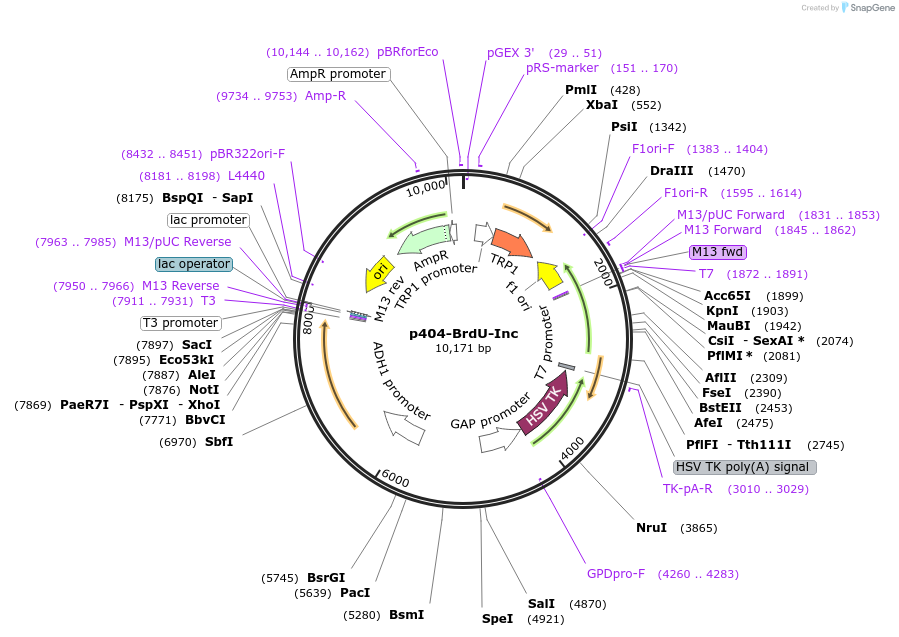

(Plasmid #71790)


Item Catalog # Description Quantity Price (USD)
Plasmid 71790 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size w/o insert (bp) 4271
  • Total vector size (bp) 10199
  • Modifications to backbone
    XbaI site in polylinker mutated
  • Vector type
    Yeast Expression
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    Thymidine Kinase
  • Species
    Herpers Simplex Virus
  • Insert Size (bp)
  • GenBank ID
  • Promoter GPD

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • GenBank ID
  • Entrez Gene
    SLC29A1 (a.k.a. ENT1)
  • Promoter ADH1

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (not destroyed)
  • 3′ cloning site ClaI (not destroyed)
  • 5′ sequencing primer agcggataacaatttcacacagg
  • 3′ sequencing primer cgccagggttttcccagtcacgac
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    HSV-TK from E. Schwob hENT1 from C. Cass

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p404-BrdU-Inc was a gift from Oscar Aparicio (Addgene plasmid # 71790 ; ; RRID:Addgene_71790)
  • For your References section:

    New vectors for simplified construction of BrdU-Incorporating strains of Saccharomyces cerevisiae. Viggiani CJ, Aparicio OM. Yeast. 2006 Oct-Nov;23(14-15):1045-51. 10.1002/yea.1406 PubMed 17083135
