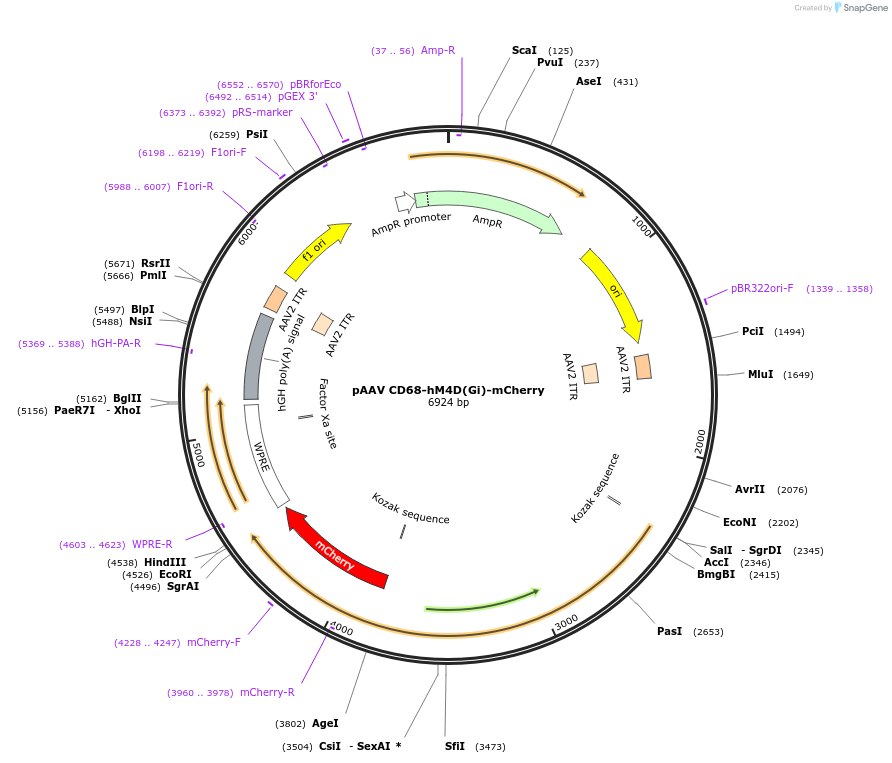

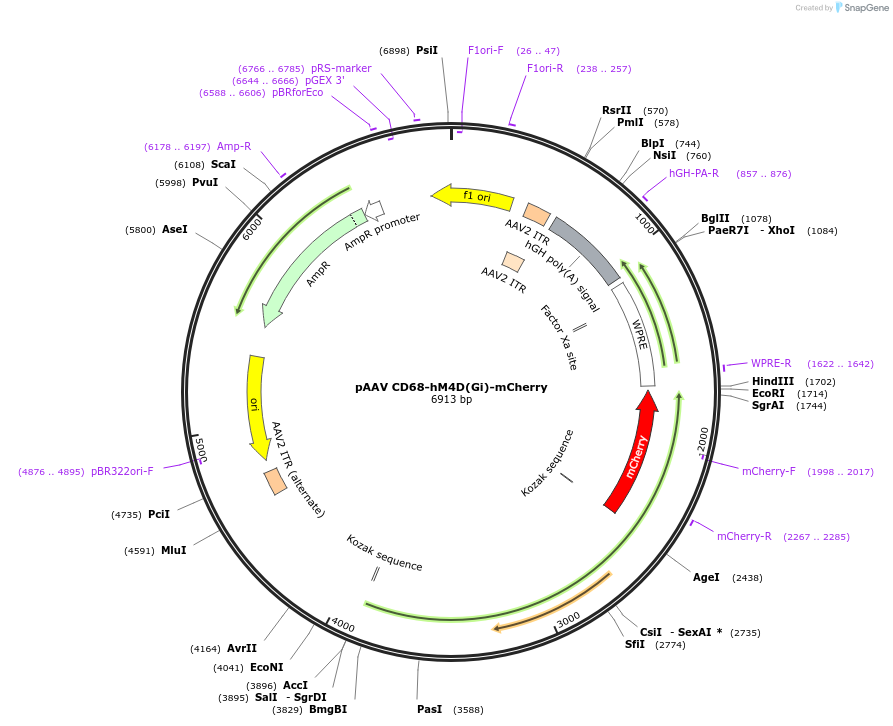

pAAV CD68-hM4D(Gi)-mCherry
(Plasmid #75033)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 75033 Standard format: Plasmid sent in bacteria as agar stab 1 $65
AAV1 75033-AAV1 100 µL at titer ≥ 1×10¹³ vg/mL and Plasmid. More Information
$380

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    AAV
  • Backbone size w/o insert (bp) 4023
  • Total vector size (bp) 7070
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hM4D(Gi)-mCherry
  • Species
    Synthetic
  • Insert Size (bp)
    2496
  • Promoter CD68

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site unknown (unknown if destroyed)
  • 3′ cloning site unknown (unknown if destroyed)
  • 5′ sequencing primer gtcatcatcccacaatcgctatgaga
  • 3′ sequencing primer caacgggccacaactcctc
  • (Common Sequencing Primers)

Resource Information

Information for AAV1 (Catalog # 75033-AAV1) ( Back to top )

Purpose

Ready-to-use AAV1 particles produced from pAAV CD68-hM4D(Gi)-mCherry (#75033). In addition to the viral particles, you will also receive purified pAAV CD68-hM4D(Gi)-mCherry plasmid DNA.

CD68-driven hM4D(Gi) receptor with an mCherry reporter for CNO-induced neuronal inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV1 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV1
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV CD68-hM4D(Gi)-mCherry was a gift from Bryan Roth (Addgene plasmid # 75033 ; http://n2t.net/addgene:75033 ; RRID:Addgene_75033)

    For viral preps, please replace (Addgene plasmid # 75033) in the above sentence with: (Addgene viral prep # 75033-AAV1)

  • For your References section:

    Morphine paradoxically prolongs neuropathic pain in rats by amplifying spinal NLRP3 inflammasome activation. Grace PM, Strand KA, Galer EL, Urban DJ, Wang X, Baratta MV, Fabisiak TJ, Anderson ND, Cheng K, Greene LI, Berkelhammer D, Zhang Y, Ellis AL, Yin HH, Campeau S, Rice KC, Roth BL, Maier SF, Watkins LR. Proc Natl Acad Sci U S A. 2016 Jun 14;113(24):E3441-50. doi: 10.1073/pnas.1602070113. Epub 2016 May 31. 10.1073/pnas.1602070113 PubMed 27247388
