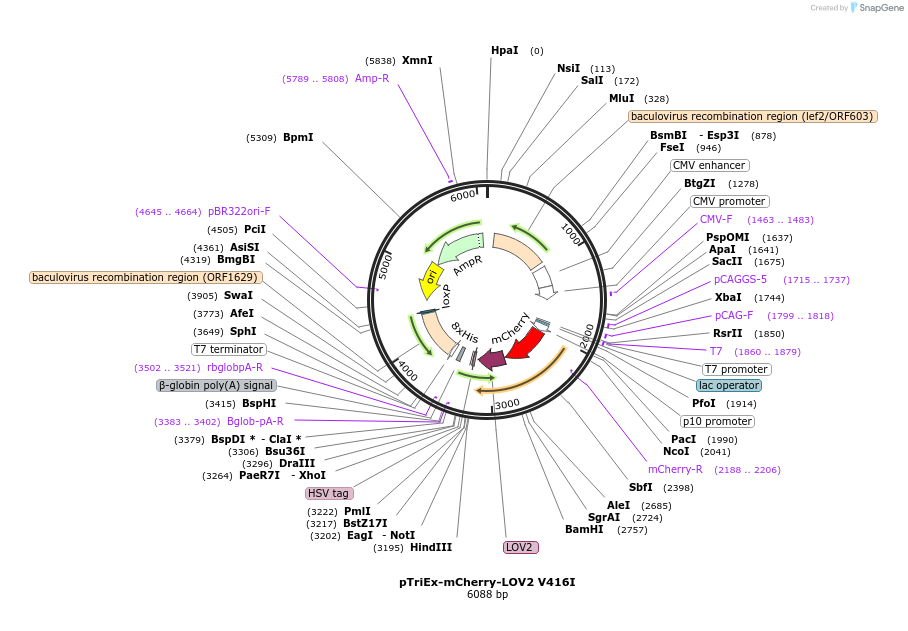

pTriEx-mCherry-LOV2 V416I
(Plasmid #81045)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 81045 Plasmid sent as bacteria in agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pTriEx
  • Backbone size w/o insert (bp) 5040
  • Total vector size (bp) 6000
  • Vector type
    Mammalian Expression, Bacterial Expression, Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    LOV V416I
  • Species
    Synthetic
  • Insert Size (bp)
    543
  • Mutation
    V416I
  • Tag / Fusion Protein
    • mCherry (N terminal on insert)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer aagtatcgggccctttgtgc
  • 3′ sequencing primer GGCAGCCTGCACCTGAGGTTAATCAC
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTriEx-mCherry-LOV2 V416I was a gift from Klaus Hahn (Addgene plasmid # 81045)
  • For your References section:

    LOVTRAP: an optogenetic system for photoinduced protein dissociation. Wang H, Vilela M, Winkler A, Tarnawski M, Schlichting I, Yumerefendi H, Kuhlman B, Liu R, Danuser G, Hahn KM. Nat Methods. 2016 Jul 18. doi: 10.1038/nmeth.3926. 10.1038/nmeth.3926 PubMed 27427858
