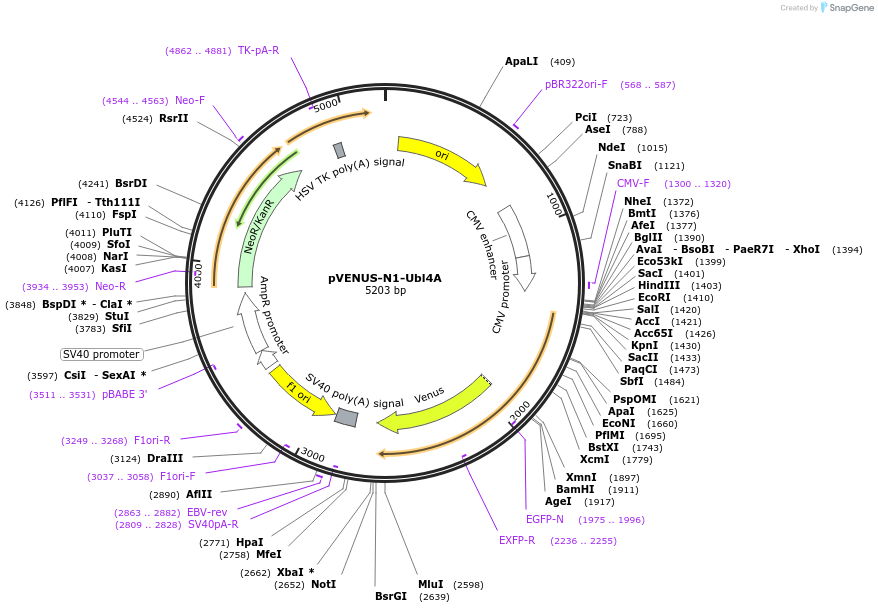

pVENUS-N1-Ubl4A
(Plasmid #86857)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 86857 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pVENUS-N1
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5171
  • Modifications to backbone
    none
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    UBL4A
  • Alt name
    Ubiquitin-like protein 4A
  • Alt name
    Ubiquitin-like protein GDX
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    471
  • Mutation
    none
  • GenBank ID
    NM_014235.4
  • Entrez Gene
    UBL4A (a.k.a. DX254E, DXS254E, G6PD, GDX, GET5, MDY2, TMA24, UBL4)
  • Promoter CMV
  • Tag / Fusion Protein
    • VENUS (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SacII (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV-F
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pVENUS-N1-Ubl4A was a gift from Yihong Ye (Addgene plasmid # 86857 ; http://n2t.net/addgene:86857 ; RRID:Addgene_86857)
  • For your References section:

    The HECT domain ubiquitin ligase HUWE1 targets unassembled soluble proteins for degradation. Xu Y, Anderson DE, Ye Y. Cell Discov. 2016 Nov 8;2:16040. eCollection 2016. 10.1038/celldisc.2016.40 PubMed 27867533
