LP110a
(Plasmid #90199)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 90199 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

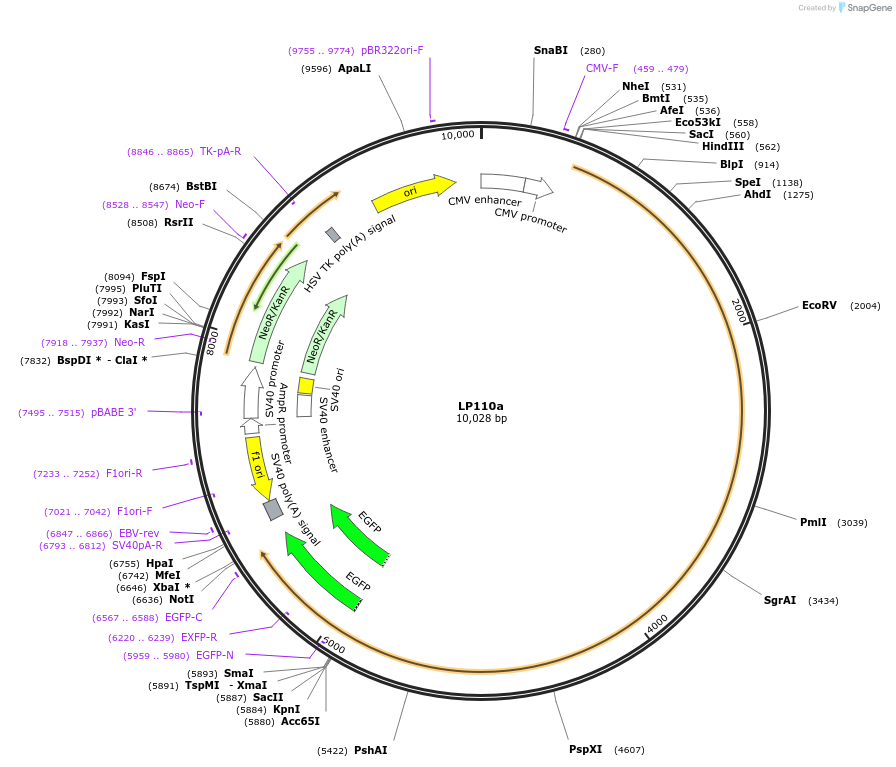

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 10010
  • Modifications to backbone
    None
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    KIF13A
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    5310
  • Mutation
    full length protein, no mutations
  • GenBank ID
    NM_001105566.2
  • Entrez Gene
    KIF13A (a.k.a. RBKIN, bA500C11.2)
  • Promoter CMV
  • Tag / Fusion Protein
    • GFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer CMV-F: CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer EGFP_N: CGTCGCCGTCCAGCTCGACCA
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    LP110a was a gift from Lotte Pedersen (Addgene plasmid # 90199 ; http://n2t.net/addgene:90199 ; RRID:Addgene_90199)
  • For your References section:

    KIF13B establishes a CAV1-enriched microdomain at the ciliary transition zone to promote Sonic hedgehog signalling. Schou KB, Mogensen JB, Morthorst SK, Nielsen BS, Aleliunaite A, Serra-Marques A, Furstenberg N, Saunier S, Bizet AA, Veland IR, Akhmanova A, Christensen ST, Pedersen LB. Nat Commun. 2017 Jan 30;8:14177. doi: 10.1038/ncomms14177. 10.1038/ncomms14177 PubMed 28134340
