Genomic mining of prokaryotic repressors for orthogonal logic gates.
Stanton BC, Nielsen AA, Tamsir A, Clancy K, Peterson T, Voigt CA
Nat Chem Biol. 2013 Dec 8. doi: 10.1038/nchembio.1411.
PubMed Article

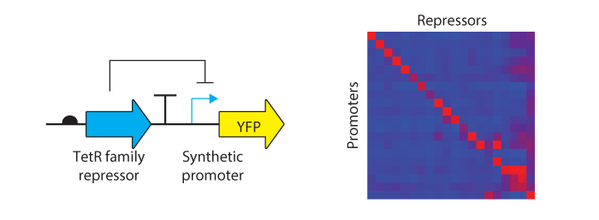

Deposited by Christopher Voigt's lab, these response function plasmids (pRF-) contain a transcriptional repressor, which controls the expression of a YFP output. Repressors are under the control of the IPTG-inducible Ptac promoter. Expression of the YFP gene is controlled by a synthetic constitutive promoter that contains a repressor operator sequence. The YFP output is repressed in the presence of IPTG. The various circuit plasmids achieve either the NAND (pLux-LmrA and pNAND-PhlF) or AND (pAND) behavior. To generate the NAND behavior, the following input concentrations were used: no inducer (-/-), 1 mM IPTG (+/-), 20 µM 3OC6HSL (-/+), and 1 mM IPTG and 20 µM 3OC6HSL (+/+).To generate the AND behavior, the following inducer concentrations were used: no inducer (-/-), 1 mM IPTG (+/-), 100 ng/mL aTc (-/+), and 1 mM and 100 ng/mL aTc (+/+).

Voigt Lab Repressors for Orthogonal Logic Gates

Plasmids from Article

ID Plasmid
49355pRF-AmtR
Loading...
49356pRF-AmeR
Loading...
49357pRF-BetI
Loading...
49358pRF-BM3R1
Loading...
49359pRF-ButR
Loading...
49360pRF-HapR
Loading...
49361pRF-HlyIIR
Loading...
49362pRF-IcaR
Loading...
49363pRF-LitR
Loading...
49364pRF-LmrA
Loading...
49365pRF-McbR
Loading...
49366pRF-Orf2
Loading...
49367pRF-PhlF
Loading...
49368pRF-PsrA
Loading...
49369pRF-QacR
Loading...
49370pRF-ScbR
Loading...
49371pRF-SmcR
Loading...
49372pRF-SrpR
Loading...
49373pRF-TarA
Loading...
49374pRF-TetR
Loading...
49375pLux-LmrA
Loading...
49376pNAND-PhlF
Loading...
49377pAND
Loading...
51148pET21a-AcrR
Loading...
51149pET21a-AmeR
Loading...
51150pET21a-AmrR
Loading...
51151pET21a-AmtR
Loading...
51154pET21a-BarA
Loading...
51155pET21a-BarB
Loading...
51156pET21a-BetI
Loading...
51157pET21a-BM1P1
Loading...
51158pET21a-BM3R1
Loading...
51159pET21a-BpeR
Loading...
51161pET21a-CalR1
Loading...
51162pET21a-CampR
Loading...
51163pET21a-CasR
Loading...
51164pET21a-CprB
Loading...
51165pET21a-CymR
Loading...
51166pET21a-Cyp106
Loading...
51167pET21a-DhaR
Loading...
51168pET21a-Ef0113
Loading...
51170pET21a-EthR
Loading...
51172pET21a-HapR
Loading...
51173pET21a-HemR
Loading...
51174pET21a-HlyIIR
Loading...
51176pET21a-IcaR-e
Loading...
51177pET21a-IfeR
Loading...
51178pET21a-JadR2
Loading...
51179pET21a-KstR
Loading...
51181pET21a-LitR
Loading...
51183pET21a-LuxT
Loading...
51184pET21a-McbR
Loading...
51188pET21a-MtrR
Loading...
51189pET21a-NonG
Loading...
51191pET21a-Orf2
Loading...
51192pET21a-orfL6
Loading...
51193pET21a-PaaR
Loading...
51195pET21a-PqrA
Loading...
51210pET21a-TylP
Loading...
