AV09_pDonor.EP.S1.TS
(Plasmid #100297)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 100297 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 100297-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 100297-D100 100 μg of DNA in Tris buffer $585
Add to Cart

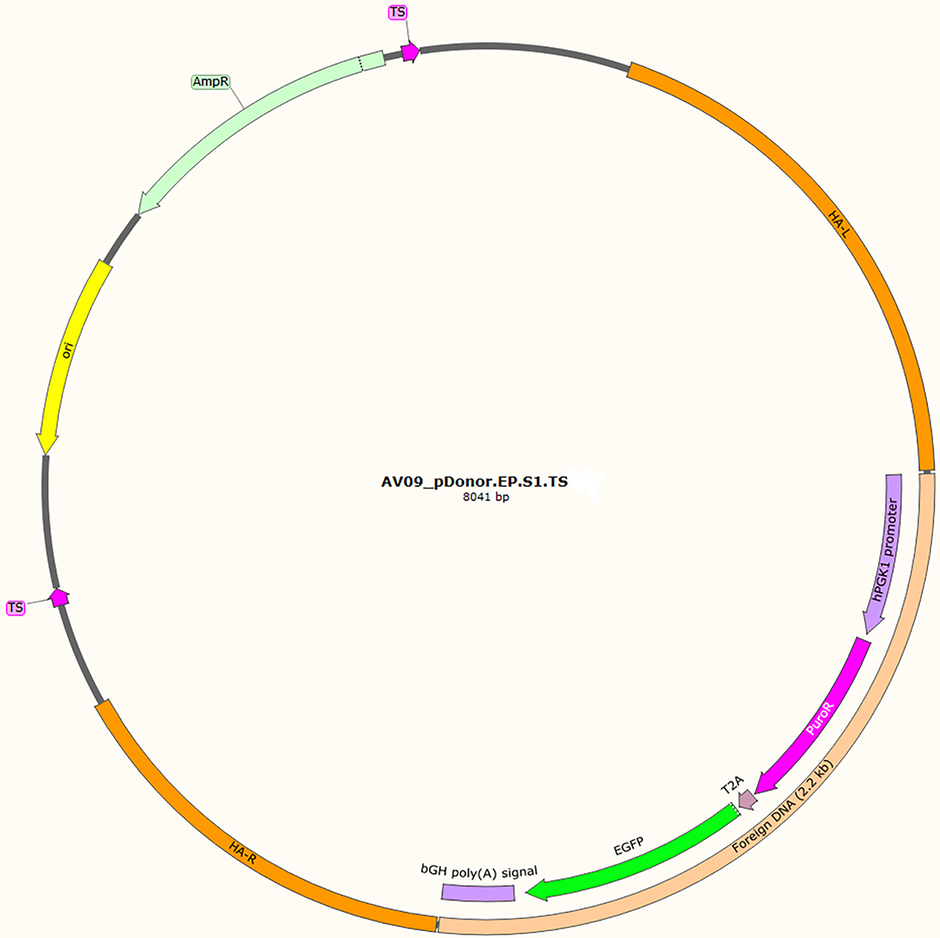

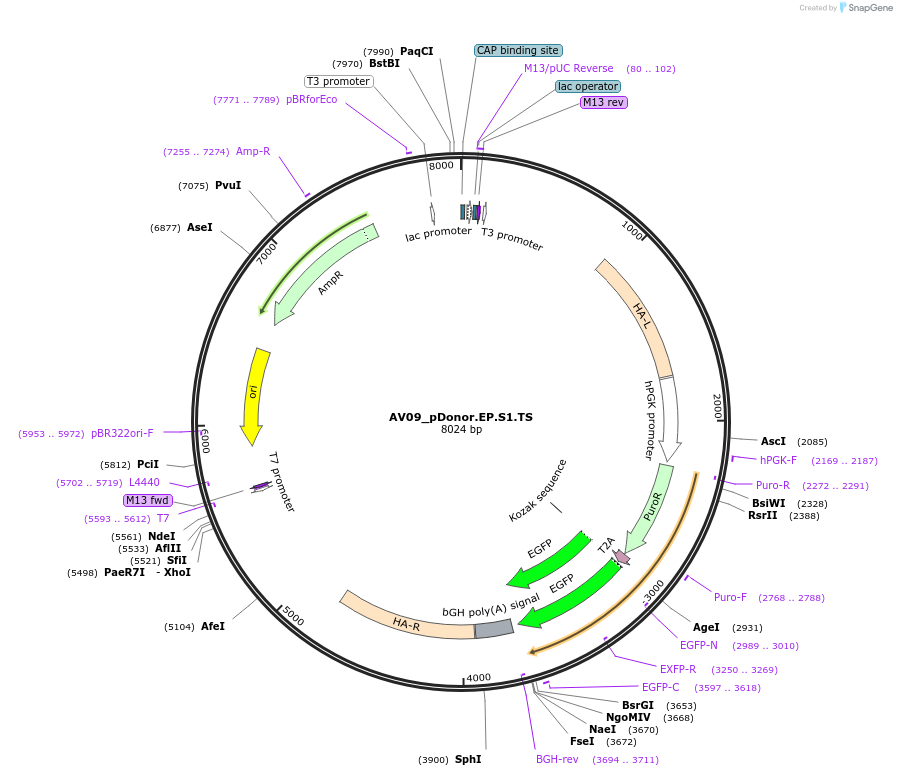

Backbone

  • Vector backbone
    pBR322
  • Total vector size (bp) 8041
  • Vector type
    Mammalian Expression, CRISPR, Synthetic Biology
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PuroR.T2A.EGFP expression unit
  • Species
    H. sapiens (human), Synthetic
  • Insert Size (bp)
    2185

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Combine this donor plasmid with SpCas9 or SpCas9.D10A with Addgene plasmid 41818 gRNA_AAVS1-T2; Mali et al. (named pgRNA.S1 in Chen et al. 2017) for inducing homology-directed AAVS1 targeting. This donor plasmid has its targeting module flanked by the target site (TS) for gRNA.S1: 5’-CTGTCCCCTCCACCCCACAGTggggccactagggacaggattggTGACAGA-3’.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AV09_pDonor.EP.S1.TS was a gift from Manuel Goncalves (Addgene plasmid # 100297 ; http://n2t.net/addgene:100297 ; RRID:Addgene_100297)

  • For your References section:

    In trans paired nicking triggers seamless genome editing without double-stranded DNA cutting. Chen X, Janssen JM, Liu J, Maggio I, 't Jong AEJ, Mikkers HMM, Goncalves MAFV. Nat Commun. 2017 Sep 22;8(1):657. doi: 10.1038/s41467-017-00687-1. 10.1038/s41467-017-00687-1 PubMed 28939824
