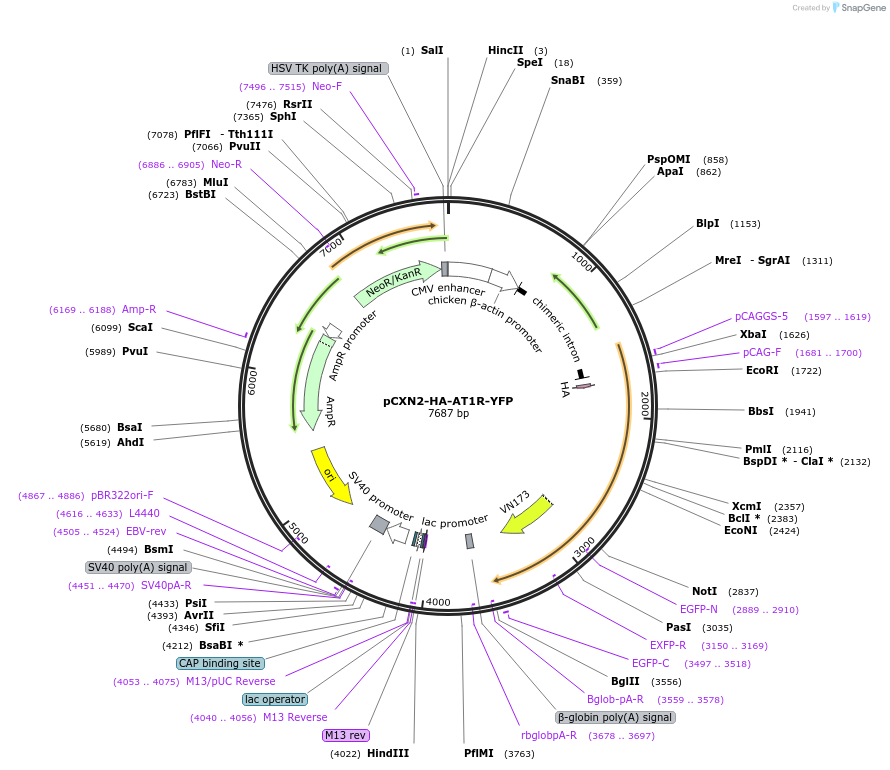

pCXN2-HA-AT1R-YFP
(Plasmid #101659)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 101659 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 101659-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 101659-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pCXN2
  • Total vector size (bp) 7831
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    DH5alpha is also a suitable growth strain.
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Angiotensin II type 1 receptor
  • Alt name
    AT1R
  • Alt name
    AGTR1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1114
  • GenBank ID
    NM_000685.4
  • Entrez Gene
    AGTR1 (a.k.a. AG2S, AGTR1B, AT1, AT1AR, AT1B, AT1BR, AT1R, AT2R1, ATR1, HAT1R)
  • Promoter CAG promoter
  • Tags / Fusion Proteins
    • HA (N terminal on insert)
    • YFP (Venus) (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (with HA) (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer unknown
  • 3′ sequencing primer unknown
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCXN2-HA-AT1R-YFP was a gift from Yusuke Ohba (Addgene plasmid # 101659 ; http://n2t.net/addgene:101659 ; RRID:Addgene_101659)

  • For your References section:

    Attenuation of ligand-induced activation of angiotensin II type 1 receptor signaling by the type 2 receptor via protein kinase C. Inuzuka T, Fujioka Y, Tsuda M, Fujioka M, Satoh AO, Horiuchi K, Nishide S, Nanbo A, Tanaka S, Ohba Y. Sci Rep. 2016 Feb 9;6:21613. doi: 10.1038/srep21613. 10.1038/srep21613 PubMed 26857745
