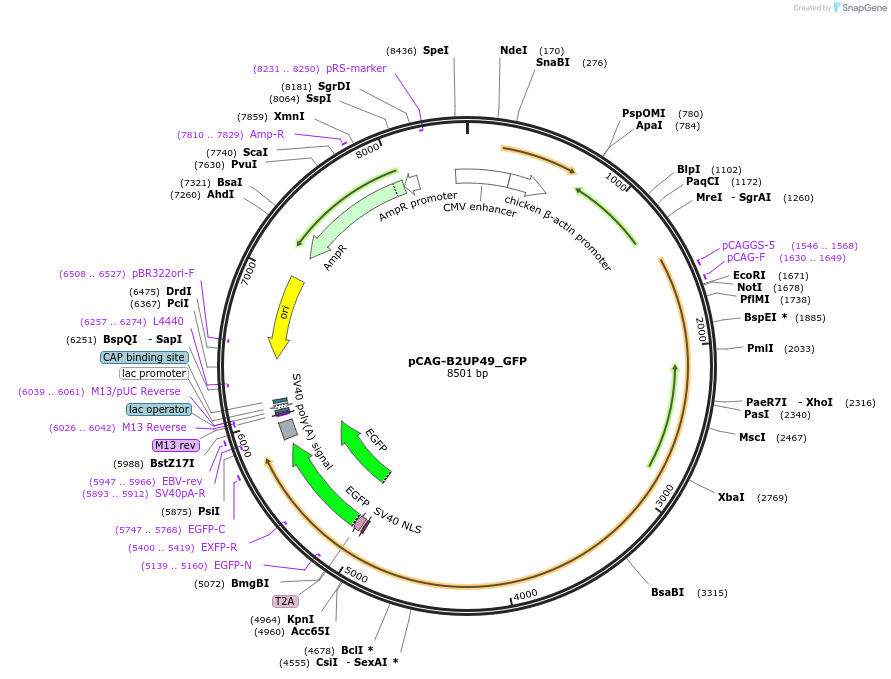

pCAG-B2UP49_GFP
(Plasmid #103071)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 103071 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 103071-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 103071-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pCas9_GFP
  • Backbone manufacturer
    Kiran Musunuru (Addgene plasmid # 44719)
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    B2UP49(Cas9 coding gene from Akkermansia muciniphila (strain ATCC BAA-835))
  • Insert Size (bp)
    3303
  • Mutation
    human codon-optimized
  • Promoter CMV

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer gtgctgtctcatcattttggcaaaGAATTCGCGGCCGCCACC
  • 3′ sequencing primer aGCAGGGCTGACCCCAAGAAGAAGAGGAAGGTGAGGTC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG-B2UP49_GFP was a gift from Duhee Bang (Addgene plasmid # 103071 ; http://n2t.net/addgene:103071 ; RRID:Addgene_103071)

  • For your References section:

    High-throughput construction of multiple cas9 gene variants via assembly of high-depth tiled and sequence-verified oligonucleotides. Cho N, Seo HN, Ryu T, Kwon E, Huh S, Noh J, Yeom H, Hwang B, Ha H, Lee JH, Kwon S, Bang D. Nucleic Acids Res. 2018 May 18;46(9):e55. doi: 10.1093/nar/gky112. 10.1093/nar/gky112 PubMed 29529247
