pCIBN-TetR-tagRFP-T
(Plasmid
#103809)
-
Purpose'Localizer' construct that marks tetO arrays and is targeted by a PHR-tagged effector upon illumination with blue light; can be visualized without triggering PHR recruitment
-
Depositing Lab
-
Depositing OrganizationDeutsches Krebsforschungszentrum (DKFZ)
Located in Germany -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 103809 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 103809-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 103809-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-C1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 3932
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCIBN-TetR-tagRFP-T
-
Alt nameN-terminus of CIB1
-
SpeciesA. thaliana (mustard weed); E. coli
-
Insert Size (bp)1881
-
MutationTetR: A4G (M2V)
-
Entrez GeneCIB1 (a.k.a. AT4G34530, T4L20.110, T4L20_110, cryptochrome-interacting basic-helix-loop-helix 1)
-
Entrez GenetetR (a.k.a. TC1_0054)
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site BamHI (not destroyed)
- 5′ sequencing primer CMV-F
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
EGFP was cut out from the backbone (NheI/BamHI cuts); relevance of mutations unknown
DNA (Catalog # 103809-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 103809-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCIBN-TetR-tagRFP-T was a gift from Karsten Rippe (Addgene plasmid # 103809 ; http://n2t.net/addgene:103809 ; RRID:Addgene_103809) -
For your References section:
Real-time observation of light-controlled transcription in living cells. Rademacher A, Erdel F, Trojanowski J, Schumacher S, Rippe K. J Cell Sci. 2017 Dec 15;130(24):4213-4224. doi: 10.1242/jcs.205534. Epub 2017 Nov 9. 10.1242/jcs.205534 PubMed 29122982

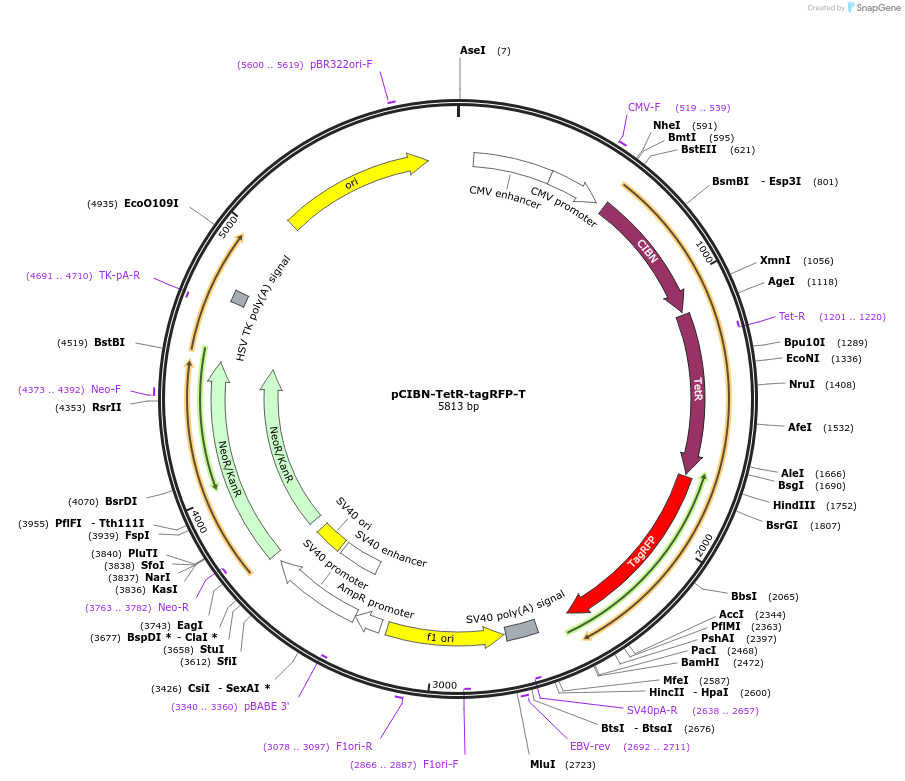

Map uploaded by the depositor.
